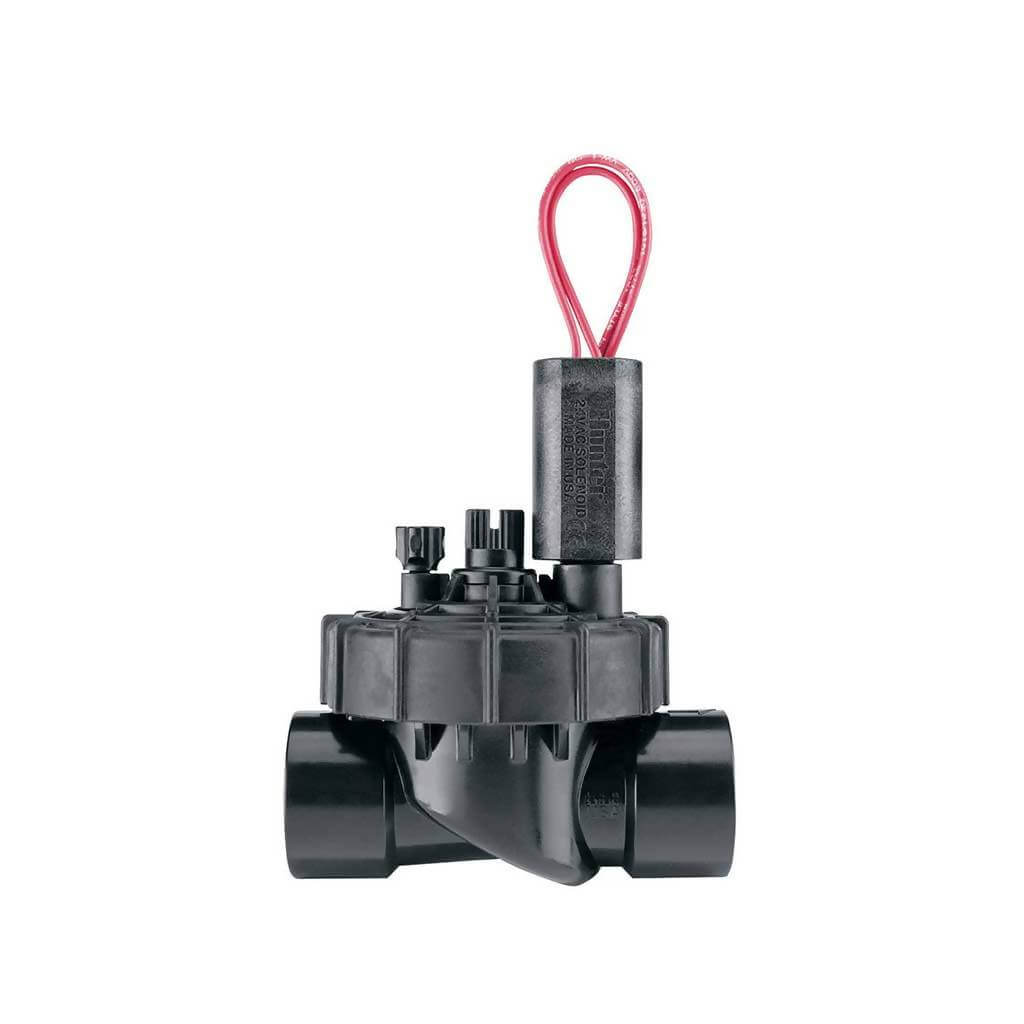

HUNTER PGV-101JT-GB Jar Top Valve With Flow Control, BSP (25mm, 10bar)

The HUNTER PGV-101JT-GB Jar Top Irrigation Valve With Flow Control makes this go-to valve an easy choice with simple serviceability. The flow control maximizes efficiency and prolongs the life of a system by fine-tuning the flow and pressure for each zone. Ideal for residential use.

Flow control with 1in (25mm) globe jar top valve & female BSP thread
Quick & easy activation at the valve thanks to the external & internal manual bleed
Easy access without tools thanks to the durable glass-filled nylon threaded bonnet ring
Superior leak-free performance thanks to the double-beaded diaphragm seal design
Hassle-free service due to the encapsulated 24 VAC solenoid with captive plunger

Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips, and much more.

Product specifications:

Temperature rating: 66°C

Flow control: Yes

Flow: 0.05-9m³/hr; 0.7-150l/min
Recommended pressure range: 1.5-10bar; 150-1000kPa
Inlet diameter: 1cm
Warranty: 2 years

Dimensions [l x w x h]: 11 x 6 x 13cm
