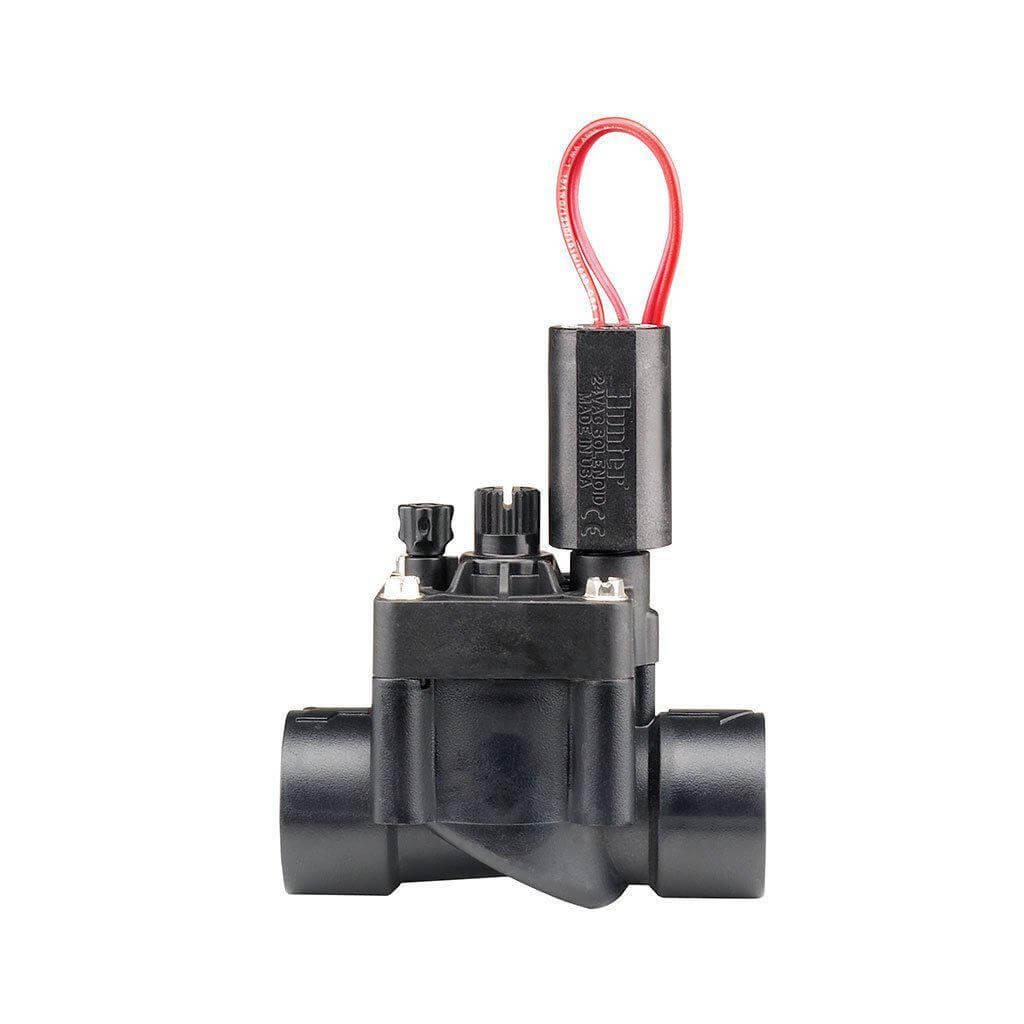

HUNTER PGV-101G-B Solenoid Valve (25mm, 10bar)

The HUNTER PGV-101G-B Solenoid Valve (25mm, 10bar) makes this go-to heavy-duty solenoid valve an easy choice with simple...
Availability: In stock
Product type: Solenoid Valves
R 673.00
R 842.00
R 673.00
Please hurry! Only 83 left in stock
Subtotal: R 673.00
10 customers are viewing this product

Shipping & Delivery

Select from shipping options at Check Out - Shipped & Delivered Within 2- 5 Business Days

Special Delivery Requests / Notes

All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.

Discounts %

Note: Not all discounts can be compounded, one discount can be applied to an order at a time.
HUNTER PGV - 101G - B Solenoid Valve (25mm, 10bar) - H2O Warehouse

HUNTER PGV-101G-B Solenoid Valve (25mm, 10bar)

R 842.00 R 673.00
HUNTER PGV - 101G - B Solenoid Valve (25mm, 10bar) - H2O Warehouse

HUNTER PGV-101G-B Solenoid Valve (25mm, 10bar)

R 842.00 R 673.00
Description

The HUNTER PGV-101G-B Solenoid Valve (25mm, 10bar) makes this go-to heavy-duty solenoid valve an easy choice with simple serviceability. All models feature durable, high-grade PVC construction, reinforced glass jarring, and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure. Ideal for residential use.

25mm (1in) solenoid valve with female BSP inlet & outlet

Quick & easy activation at the valve thanks to the external & internal manual bleed
Easy access without tools thanks to the durable glass-filled nylon threaded bonnet ring
Superior leak-free performance thanks to the double-beaded diaphragm seal design

Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips, and much more.

Product specifications:

Temperature rating: 66°C

Flow control: Yes

Flow: 0.05-9 m³/hr; 0.7-150l/min
Recommended pressure range: 1.5-10bar; 150-1000kPa

Inlet diameter: 2.5cm (1in)
Warranty: 2 years

Dimensions [l x w x h]: 11 x 6 x 13cm

Solenoid specifications:

24 VAC solenoid
350 mA inrush, 190mA holding, 60Hz
370 mA inrush, 210mA holding, 50Hz

Basic technical explainer

Download: Solenoid Globe Valves - Normally Closed and Normally Open (PDF)

Illustrated overview of typical pilot-operated diaphragm globe valves, including normally closed (NC) and normally open (NO) operation. Refer to this product's specifications and manufacturer instructions for its exact construction and operating limits.
