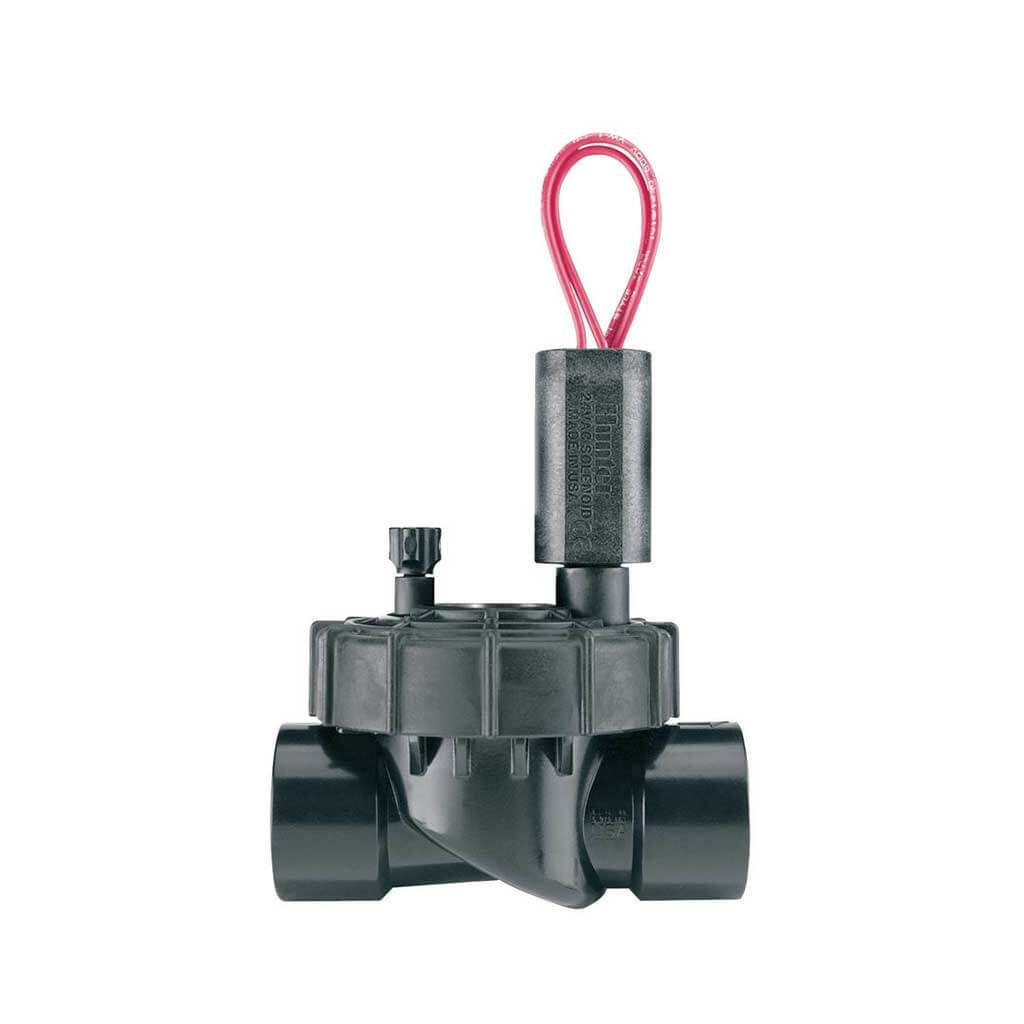

HUNTER PGV-100JT-GB Jar Top Valve Without Flow Control, BSP (25mm, 10bar)

 The HUNTER PGV-100JT-GB Jar Top makes this go-to valve an easy choice with simple serviceability.

1 Inch (25 mm) globe jar top valve without flow control, & female BSP thread
External & internal manual bleed allows quick & easy €œat the valve€ activation
Durable glass-filled nylon threaded bonnet ring allows easy access without tools
Double-beaded diaphragm seal design for superior leak-free performance
Encapsulated 24 VAC solenoid with captive plunger for hassle-free service

For the maximum in convenience, reliability and ease of service in a residential valve, the PGV Jar-Top is the solution. With the PGV Jar-Top, it€™s possible to service a Hunter valve without using any tools. Even with this ease-of-maintenance and operational simplicity, the PGV Jar-Top still delivers quality and performance to handle the demands of any residential system. Choose from a wide range of different configurations for specific installations that vary from region to region. All models feature durable, high-grade, corrosive and UV-resistant PVC construction, glass reinforced jarring and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure.Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips and much more.
Click here to view all Hunter irrigation products available in South Africa. Dimensions:

Inlet Diameter: 1 Inch
Height: 14cm
Length: 11cm
Width: 8cm

Product specifications:

Model: PGV-100JT-GB = 1 Inch (25 mm) Globe jar-top valve without flow control, and female BSP thread
Temperature rating: 66° C
Flow: 0.05 to 9 m3/hr; 0.7 to 150 l/min
Flow control: No
Recommended pressure range: 1.5 to 10 bar; 150 to 1000 kPa
Optional: DC latching solenoids enable Hunter€™s battery-powered controllers
Low flow capability allows use of Hunter€™s micro irrigation products
Warranty: 2 years

Application:

Residential
