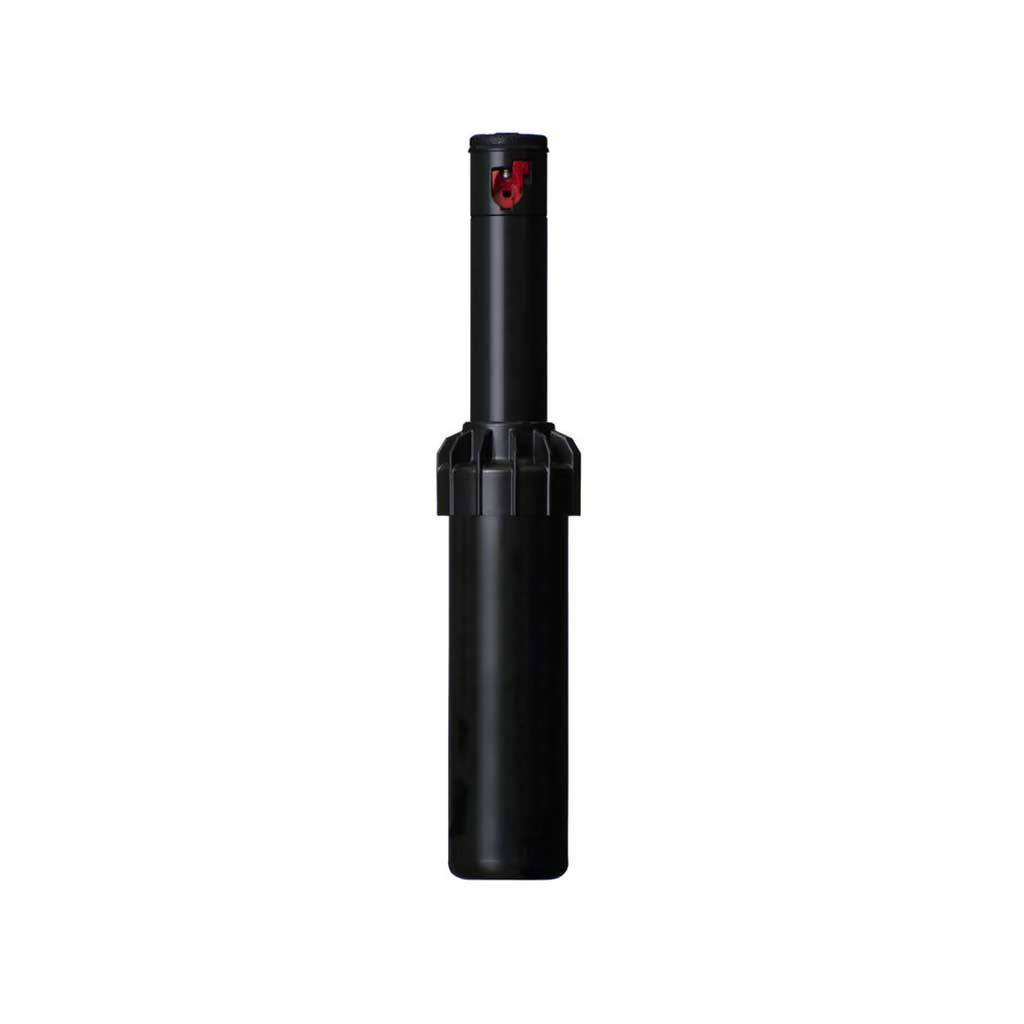

HUNTER PGJ-04 Rotor Sprinkler with 100mm Pop Up and Adjustable Arc, BSP, 1/2 Inch

The HUNTER PGJ04 Pop Up Rotor Sprinkler with Adjustable Arc is manufactured to take on harsh conditions for years on end. Get all the benefits of a rotor in a spray-sized package and close-in rotor coverage with a 7.0m minimum radius.
10 cm pop-up rotor sprinkler with adjustable arc
Fitted with a standard 2.0 nozzle with 7.0 - 7.9 radius
Through-the-top arc adjustment from 40 to 360 degrees
Water lubricated gear-drive
Factory installed rubber cover
The Hunter PGJ04 Pop Up Rotor Sprinkler was built to bring all of the efficient features of rotary sprinklers to applications that typically call for a spray. Its many benefits include a rack of easy-to-install-and-change, water-efficient nozzles, easy arc adjustment, and all the safety and durability that comes with a rubber cover. The PGJ is able to work in tandem with larger rotors to combine big and small areas in a single zone, offering convenience and efficiency that sprays do not. When used in the right application, the PGJ allows fewer heads to perform more efficiently at a more economical price.Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips and much more.Dimensions:
Overall height: 18cm
Pop-up height:  10 cm
Exposed diameter: 3cm
Inlet size: ½" female NPT
Product specifications:
Model: PGJ-04 = 10 cm pop-up adjustable arc
Radius: 7.0 to 7.9m
Arc setting: 40 to 360 degrees
Nozzle choices: 8
Nozzle range: 0.75 to 5.0
Standard factory installed nozzle: 2.0 only
Flow rate: 0.13 to 1.23 m3/hr; 2.2 to 20.5 l/min
Recommended pressure range: 1.7 to 3.8 bar; 170 to 380 kPa
Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
Precipitation rates: 15 mm/hr approx.
Nozzle trajectory: 14 degrees approx.
Quick check arc mechanism
Warranty period: 2 years
1 adjustment tool per shipment
