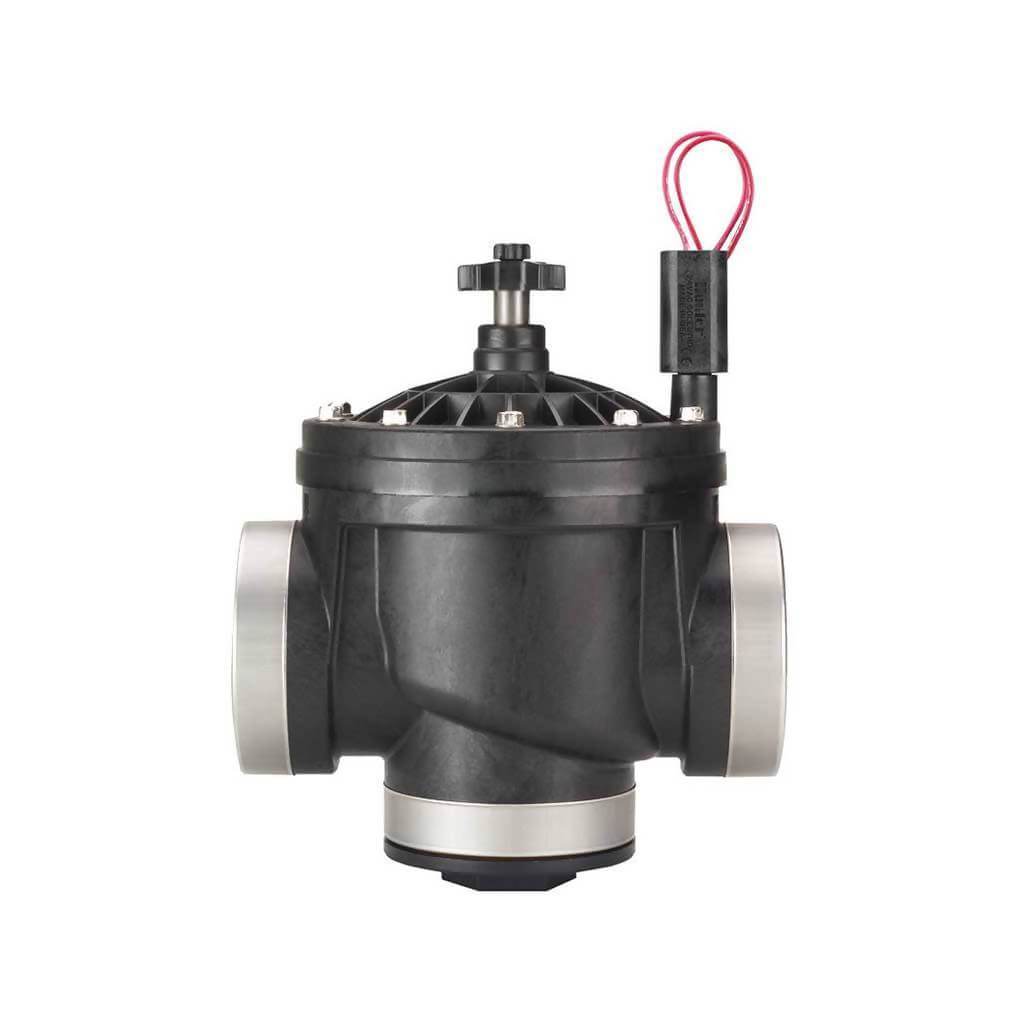

HUNTER ICV301B Globe/ Angle Valve, BSP Threads, 80mm

Hunter ICV301B is a top of the line valve for high-pressure commercial systems.
External & internal manual bleed allows quick & easy €œat the valve€� activation
Glass-filled nylon construction resulting in the highest pressure rating
Double-beaded diaphragm seal design for superior leak-free performance
Fabric-reinforced EPDM diaphragm & EPDM seat ensure superior performance in all conditions
Captive bonnet bolts provide hassle-free valve maintenance
Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
In order to create a plastic valve that can consistently operate at 15 bar, Hunter relies on only materials that are both time and contractor proven. Created to handle the wide range of conditions different sites will bring, the ICV valve includes both a fabric reinforced EPDM diaphragm and seat, and flow control as standard features. It can consistently withstand pressures of up to 15 bar while handling the continual hammer that such forces will produce. Plus, it€™s exceptionally easy to service, with bonnet bolts that can be loosened and tightened using a variety of common contractor tools. A Filter Sentry„¢ option is also available for applications that involve dirty water. The Filter Sentry„¢ system keeps the valve filter screen free of debris commonly found in non-potable water sources.Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips and much more.Dimensions:
Height: 27.3cm
Length: 23cm
Width: 18.7cm
Product specifications:
Model: ICV-301B = 3 Inch (80mm) globe/ angle valve, BSP threads
Temperature rating: 66°C
Optional: DC latching solenoids enable Hunter€™s battery-powered controllers
Size: 3 Inch (80 mm)
Flow (m³/hr): 34 - 68
Flow (l/min): 560 - 1135
Recommended pressure range: 1.5 - 15.0 bar; 150 - 1500 kPa
Captive bonnet bolts
EPDM Diaphragm & Seat: Standard
Warranty: 5 years
Flow Control
Filter Sentry: Field installed
Accu-sync capable
Reclaimed water ID handle: P/N 515005 (field installed)
Reclaimed water ID tag: P/N 700392 (field installed)
Applications:
Residential
Commercial/municipal
Potable water
Reclaimed water
Secondary water
Pressure regulation
High-pressure systems
Low-pressure systems
High-temperature locations
