Hunter I-90 ADV Adjustable Rotor with Check Valve – BSP 1½"

The Hunter I-90 ADV Adjustable Rotor with Check Valve – BSP 1½" is Hunter's premier long-range rotary sprinkler engineered specifically for the needs of professional-grade turf irrigation. With a powerful throw radius of up to 31.4 metres, the I-90 is ideal for expansive landscapes such as sports fields, public parks, golf course perimeters, and horse arenas.

This ADV model features a field-adjustable arc (from 50° to 360°), allowing flexible installation and reducing inventory requirements. The unit is equipped with a drain check valve (rated for up to 2 m elevation) that conserves water by preventing low-head drainage, while the exclusive PressurePort™ Technology ensures accurate, uniform water distribution across the entire coverage area.

The compact rotor body is built for durability, with a cushioned rubber top and jar-top access for tool-free servicing of the internal check valve and filter screen. The I-90 ADV is trusted for its reliability, efficiency, and performance in the most demanding commercial and municipal applications.

Key Features:

• Adjustable arc (50° to 360°) – Suitable for both part- and full-circle applications in one model
• Longest throw in its class – Radius range from 22.3 to 31.4 m, reducing head count in large zones
• Exclusive PressurePort™ Technology – Maximises uniformity and nozzle performance
• Triple-nozzle design – Delivers consistent, even coverage with excellent distribution
• Drain check valve included – Prevents water waste and protects plumbing (up to 2 m elevation)
• QuickCheck™ Arc Mechanism – Fast visual review and adjustment of arc setting

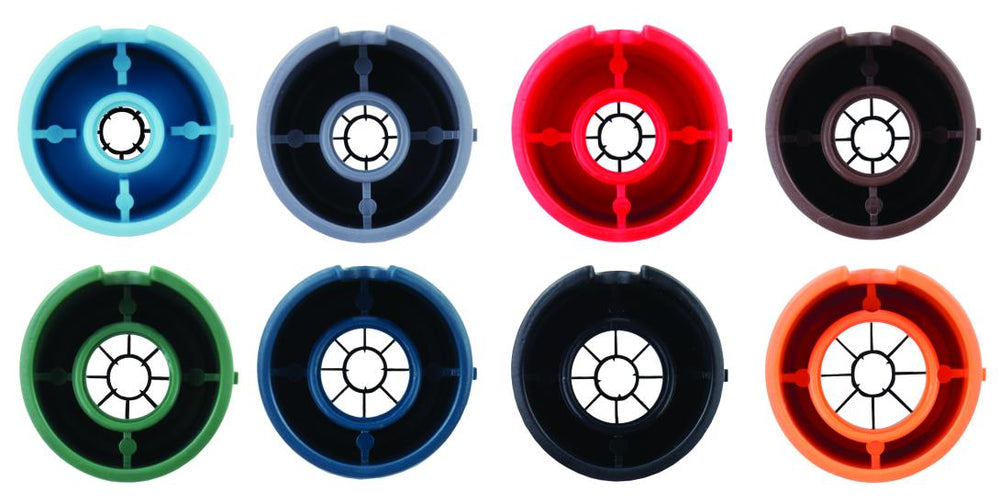

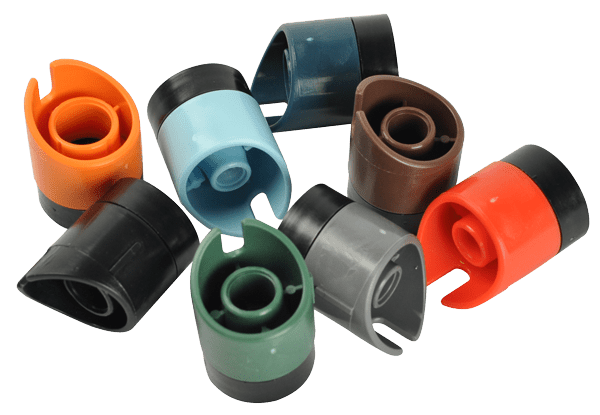

• Colour-coded nozzles – Field-changeable to suit different flow and pressure requirements
• Jar-top body cap – Allows tool-free access to the internal screen and check valve for easy maintenance
• Heavy-duty rubber cover – Enhances safety and protects sprinkler head from wear

Technical Specifications:

 Inlet Size: 1½" BSP female thread
 Arc Setting Range: 50° to 360° (adjustable)
 Radius Range (I-90 ADV): 20.1 to 29.6 m
 Radius Range (I-90 36V model): 22.3 to 31.4 m
 Flow Rate (I-90 ADV): 6.7 to 19.04 m³/hr (111.7 to 317.2 l/min)
 Flow Rate (I-90 36V): 6.93 to 18.92 m³/hr (115.5 to 315.3 l/min)
 Operating Pressure Range: 5.5 to 10.3 bar (550 to 1030 kPa)
 Recommended Pressure Range: 5.5 to 8.3 bar (550 to 830 kPa)
 Precipitation Rate: Approx. 19 mm/hr
 Pop-up Height: 10 cm (4")
 Nozzle Options: 8 nozzle choices
 Check Valve Holdback: Up to 2 m elevation
 Warranty: 5 Years (Manufacturer’s warranty)

Applications:

• Sports fields and athletic complexes
• Golf course fairways and roughs
• Municipal parks and green spaces
• Polo grounds and horse arenas
• Perimeter irrigation for large-scale turf

Why Choose the Hunter I-90 ADV?

When you need superior coverage, durability, and intelligent water-saving features, the Hunter I-90 ADV is the top-tier choice for professionals. Its unmatched radius range and advanced nozzle design ensure every corner of your landscape receives consistent, efficient watering. Designed for long-term serviceability and peak irrigation performance, it’s a high-value investment for large-area irrigation.
