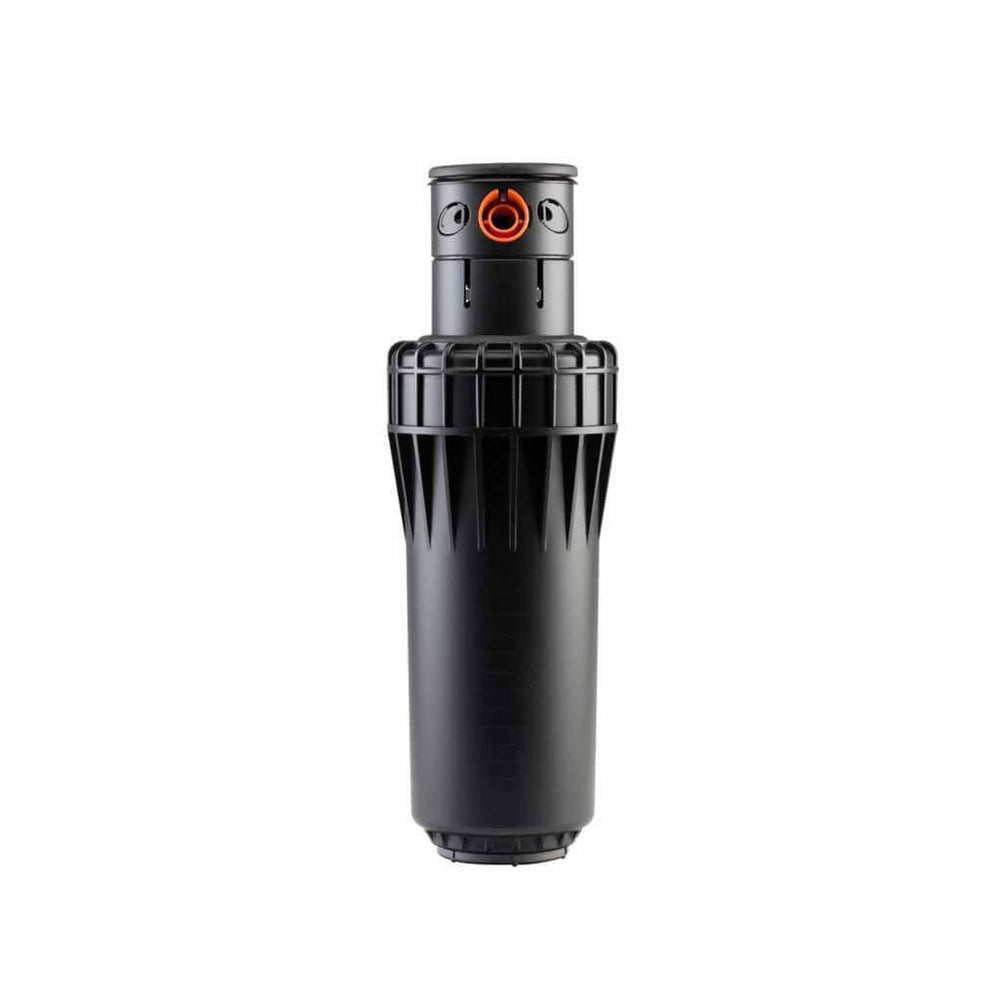

HUNTER I-90-36V-B Rotor Sprinkler with 80mm Pop Up, Full Circle, Opposing Nozzles & Check Valve, BSP, 1 1/2 Inch

The HUNTER I-90-36V-B Pop Up Rotor Sprinkler with Full Circle, Opposing Nozzles & Check Valve is Hunter€™s longest distance rotary sprinkler specifically designed for natural turf, sports fields, parks and public areas.
8cm pop-up rotor sprinkler with full circle, opposing nozzles, check valve & BSP inlet threads
Fitted with a standard #53 nozzle with 24.7 - 26.8m radius
Full circle opposing nozzles for outstanding mid-range & close-in watering
Exclusive Pressure Port„¢ nozzle technology & water lubricated gear-drive
5-year warranty
With a radius up to 26.8m from a single sprinkler, the HUNTER I-90 Pop Up Rotor Sprinkler boasts a coverage area no other commercial sprinkler can deliver. Yet, its reduced-size diameter and cushioned rubber cover make it the perfect choice for parks and wide-open lawn areas, as well as perimeter watering of athletic fields and horse arenas. The rotor is also easy to service, with a €œjar-top€ body cap that allows quick access to the filter screen and check valve with no extra pieces, parts, or tools required. The I-90 is offered in two models: a full-circle opposing-nozzle version or an adjustable arc model, each with color-coded nozzles that can be field-changed to match the specific needs of any large site.Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips and much more.Dimensions:
Overall height: 28cm
Pop-up height: 8cm
Exposed diameter: 8.9cm
Inlet Size: 1½ Inch BSP
Product specifications:
Model: I-90-36V-B = 8 cm pop-up, full circle, opposing nozzles, with BSP inlet threads
Radius: 24.7 - 26.8m
Flow rate: 6.70 to 19.04 m3/hr; 111.7 to 317.2 l/min
Recommended pressure range: 5.5 to 8.0 bar; 550 to 800 kPa
Operating pressure range: 5.0 to 8.0 bar; 500 to 800 kPa
Precipitation rates: 19 mm/hr approx. (360 degrees)
Standard nozzle trajectory: 22.5° (optional)
Low angle nozzle trajectory: 15° (optional)
Check valves: pre-installed
Specialty nozzles: pre-installed
Check height: 2m
Nozzle options: 16
Factory-installed drain check valve
Reclaimed water ID
Warranty: 5 years
Applications:
Commercial/ municipalities
Athletic fields
Reclaimed water
