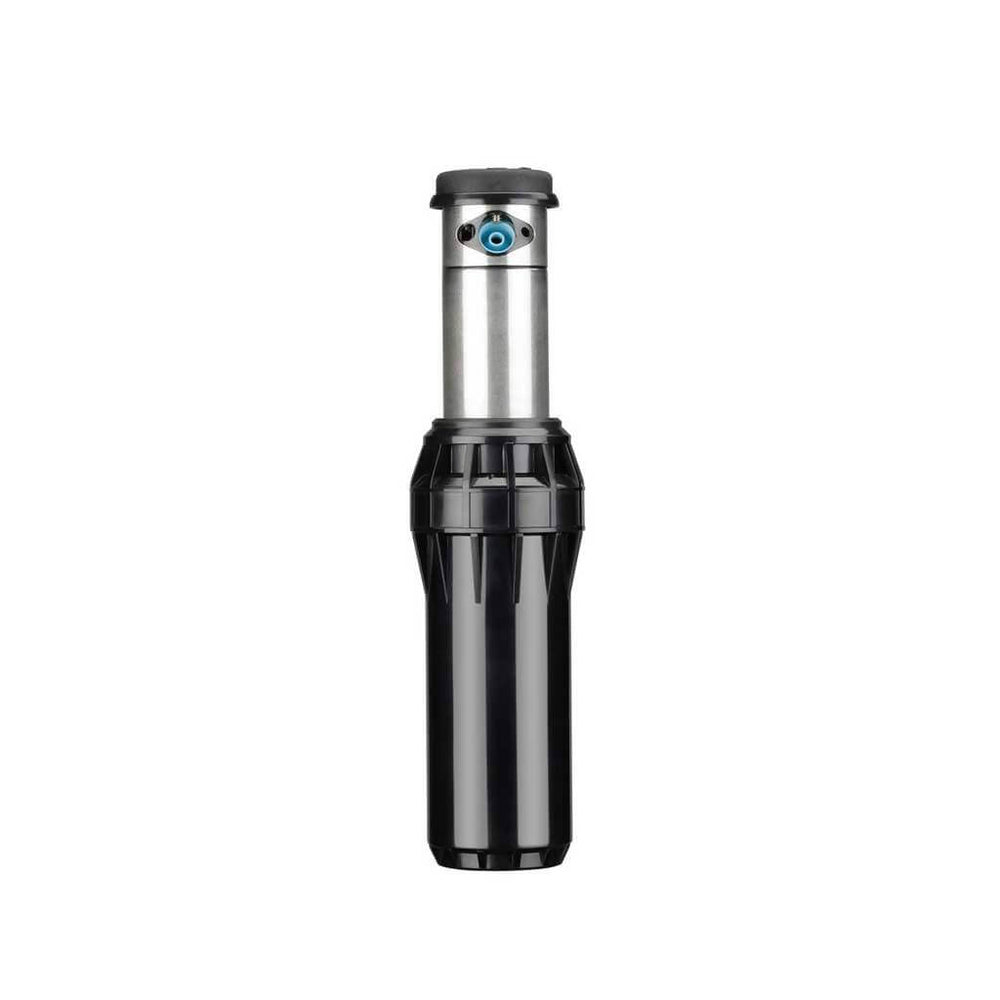

HUNTER I-40-04-SSHSB Rotor Sprinkler with 100mm Pop Up, Adjustable Arc, High Speed, Stainless Steel, BSP, 1 Inch

For sports fields and parks, the HUNTER I-40-04-SS-B Rotor Sprinkler delivers professional results.
10 cm pop-up rotor with adjustable arc, high speed & BSP inlet threads
6 nozzles included with 13.1 - 23.3m radius
Drain check valve included
Stainless steel riser
5-year warranty
The I-40 is a tough commercial rotor that delivers water with accuracy and efficiency at distances up to 23.2 m. Featuring diverse three-port nozzle options, a non-strippable drive, and a thick rubber cover built to prevent injury; it's no wonder this rotor is found in more stadiums than any other in the world. With the strength of stainless steel, the I-40 is built to last in the harshest sports, public park, and commercial environments. If efficiency, effective irrigation, and beautiful results are the goal, the I-40 is the irrigation professional's best solution.Dimensions:
Pop-up height: 10cm
Overall height: 20cm
Exposed diameter: 5cm
Inlet size: 1 Inch BSP
Product specifications:
Model: 10 cm pop-up rotor sprinkler, high speed, check valve, stainless steel, BSP inlet threads
Radius: 13.1 - 23.3m
Flow rate: 1.63 - 6.84 m3/hr; 27.2 - 114.1 l/min
Arc setting: 50 to 360 degrees
Nozzle choices: 12
Nozzle trajectory: 25 degrees
Recommended pressure range: 2.8 - 7.0 bar; 280 - 700 kPa
Operating pressure range: 2.5 - 7.0 bar; 250 - 700 kPa
Precipitation rates: 15 mm/hr approx.
Factory installed rubber cover
Check valves: pre-installed
Specialty nozzles: pre-installed
Check height: 4.5m
Warranty period: 5 years
Stainless steel
High speed
Drain check valve (up to 4.5m of elevation)
