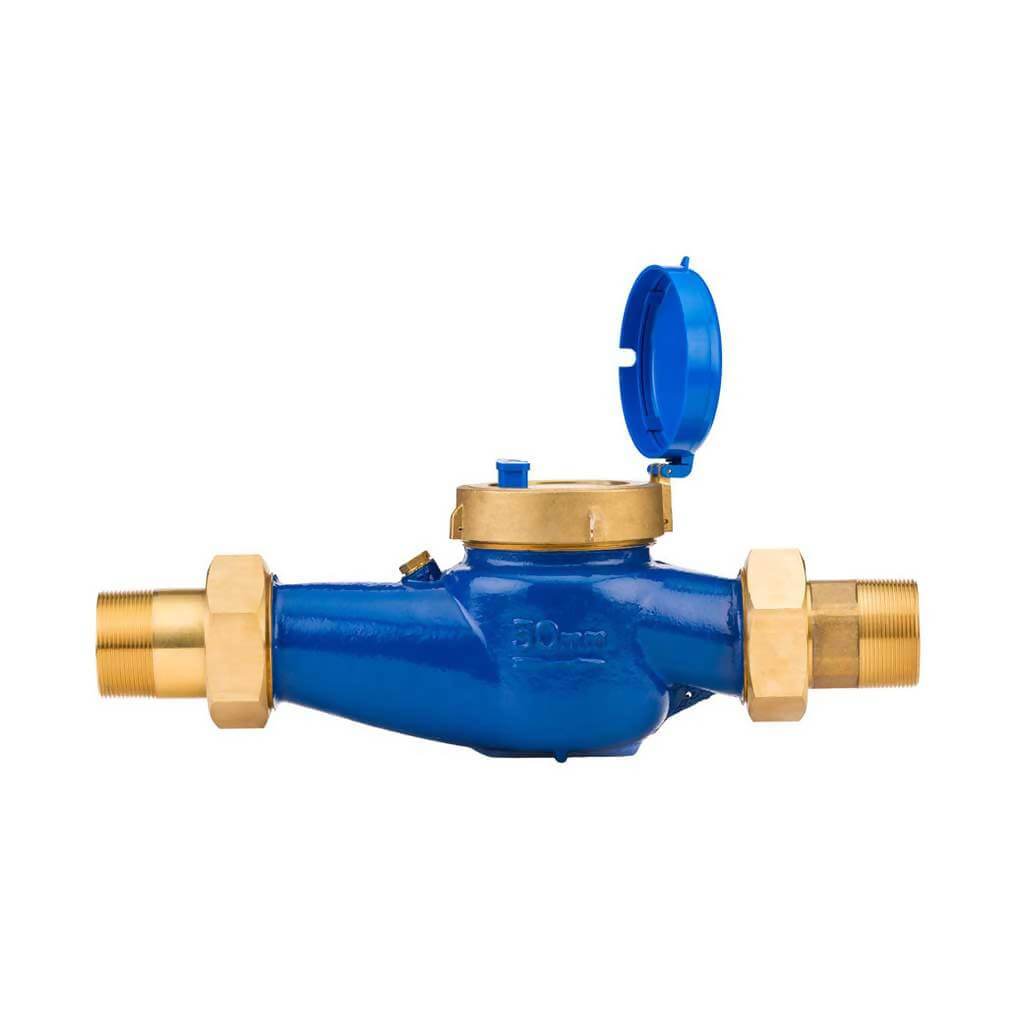

HUNTER HC200FLOWB 50mm Flow Meter BSP Thread

The simple-to-install HC flow meter, now with additional range options to accommodate larger pipe sizes, allows customers to better monitor flow rates in systems with Hydrawise-enabled Wi-Fi controllers. When connected to the Hydrawise platform, the HC flow meter provides a convenient option to detect, monitor, and report critical flow zone data and total system flows.
50mm BSP body, male thread with 80mm BSP male adapter
Flowmeter connects to Hydrawise„¢ ready controllers
Report total water use by zone
Monitors irrigation system for high, low & unscheduled flow conditions
Dial allows for manual reading of flow totals in gallons
Factory calibrated reed-switch, scaled pulse output
By including an HC flow meter as part of a Hydrawise system installation, customers add an additional layer of landscape protection. This ensures their investment is monitored, their plants are healthy, and their outdoor living space remains in excellent condition. For contractors, a flow meter is a great way to build their businesses through increased offerings and top-level customer service, as problems can be addressed immediately before landscape degradation occurs. For landscape designers, the HC flow meter adds an extra security that helps preserve their thoughtfully designed landscapes.The HC flow meter connects to Hydrawise-enabled controllers, allowing for:
Flow monitoring
Instant high- and low-flow alerts
Leak detection
Water outage during irrigation
Total water use reporting
Zone water use reporting
Dimensions:
Inlet Size: 80mm/2 Inch BSP
Height: 16.2cm
Length: 44.7cm
Depth: 12.5cm
Weight: 7.4kg
Product specifications:
Model: HC-200-FLOW-B = 50mm BSP body, male thread with 80mm BSP male adapter
Material: Brass body with PVC cap
Temperature range (water): Up to 40°C
Electrical connection: Direct wire to controller
Accuracy:2% (+/-) at recommended flow
Meter internal diameter: 50mm
Minimum flow (l/min): 7.5
Maximum recommended flow (l/min): 400
Maximum flow rate (l/min): 500
Dial reading (m3): 1 pulse per 10 litres
Maximum working pressure (Bar): 16
