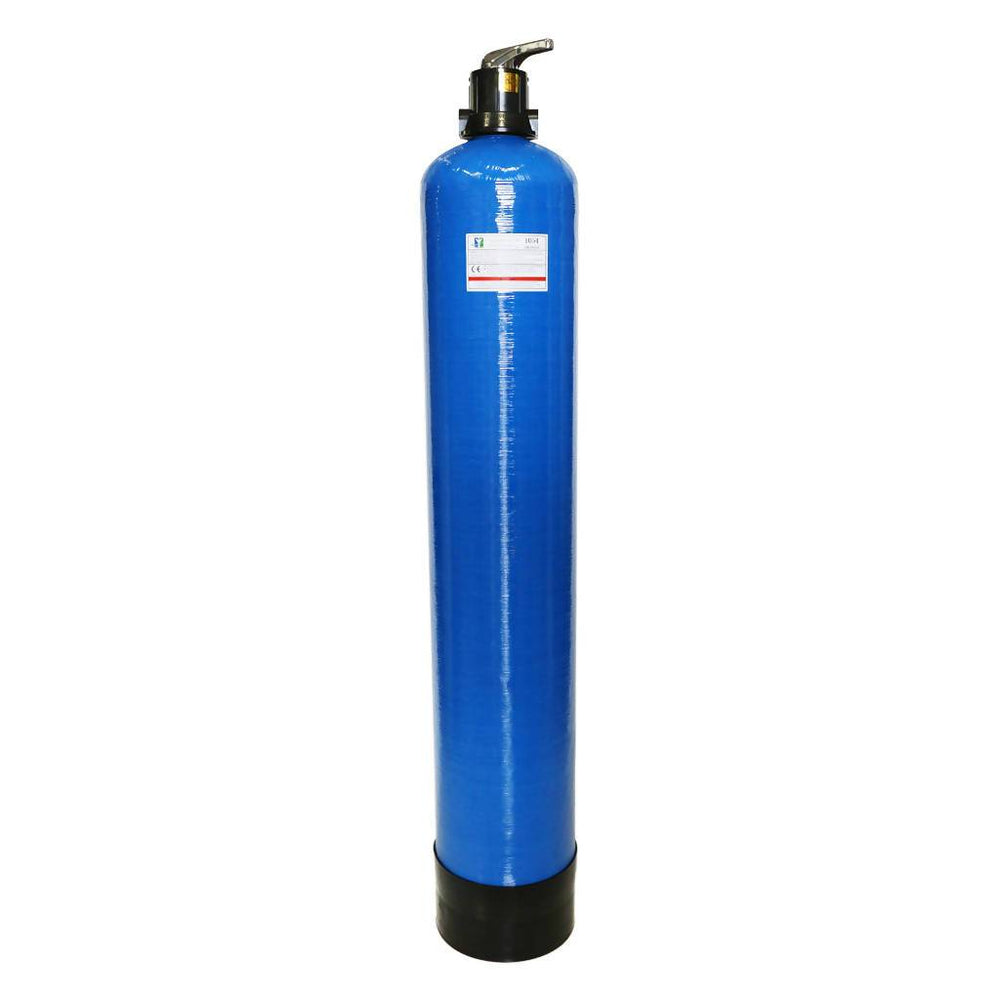

FRP Vessel 10×54 Complete – Manual Backwash Head (No Media Included)

The 10×54 FRP Vessel Complete Set is a durable and cost-effective solution for customisable water filtration. Supplied without media, this unit includes a fibreglass-reinforced pressure vessel, a top-mounted manual backwash control valve, and a full internal distribution system.

Designed for smaller residential and light commercial systems, it offers flexibility in media choice – compatible with sediment, catalytic, activated carbon, or pH correction media depending on your treatment requirements. The manual valve allows for simple rinse and backwash operation without the need for electricity.

• Key Features

• FRP (Fibreglass Reinforced Plastic) pressure vessel – 10” diameter × 54” height
• Manual top-mounted backwash valve – no power required
• Standard 2.5” threaded top opening
• Includes riser pipe, bottom strainer, and top distributor
• High chemical resistance and corrosion-proof construction
• Suitable for a wide range of filtration media (sold separately)
• Low-maintenance, user-operated backwash control
• Compact footprint ideal for domestic installations

✓ Benefits

✓ Manual backwash operation gives full control without electrical components
✓ Supplied empty – tailor media loading to your exact water quality needs
✓ Long service life with FRP corrosion-resistant construction
✓ Ideal for borehole, rainwater, or pre-filtration setups
✓ Suitable for smaller households, cottages, or point-of-entry systems
✓ Simplifies maintenance and reduces operational costs

Technical Specifications

• Vessel Size: 10” diameter × 54” height
• Vessel Material: FRP (fibreglass reinforced plastic)
• Opening: 2.5” threaded top
• Control Valve: Manual backwash head – top-mounted
• Valve Port Size: 1” BSP female (inlet/outlet)
• Flow Rate Range: Typically supports up to 2500–3000 L/h depending on media
• Max Working Pressure: 6 bar
• Operating Temperature: 4°C – 45°C
• Riser Pipe & Distributors: Included (top and bottom)
• Media Capacity: Approx. 55 – 65 kg (media sold separately)

What You Get

1 × 10×54 FRP Pressure Vessel (2.5” top opening)
1 × Manual top-mounted backwash valve (1” ports)
1 × Riser pipe with top and bottom distributor strainers
Note: Media not included – select appropriate media based on application
