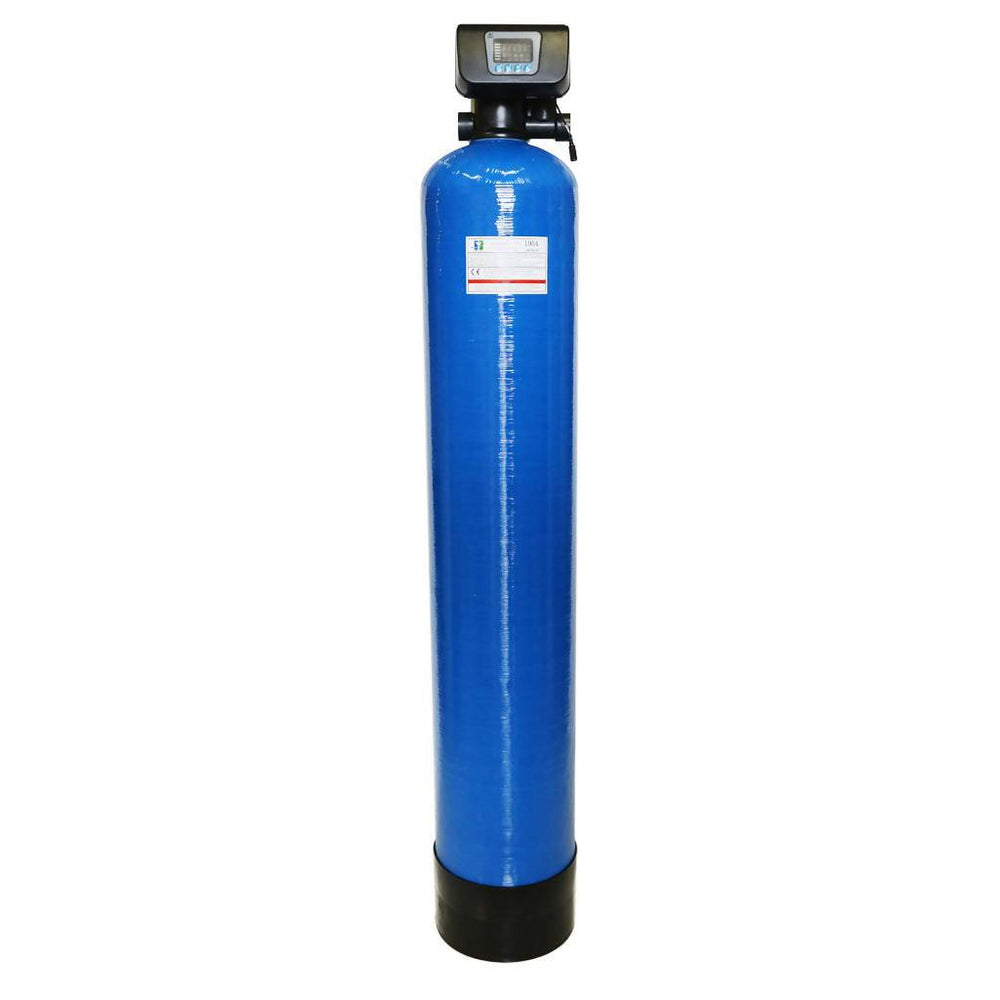

FRP Vessel 10×54 Complete – Automatic Backwash Head (No Media Included)

This 10×54 FRP Vessel Complete Set features a durable fibreglass pressure vessel fitted with a fully automatic backwash control valve and internal distribution system – supplied without filtration media to allow for custom media selection. Ideal for residential and small commercial filtration systems, it supports a wide range of water treatment applications including iron removal, pH correction, chlorine reduction, and sediment filtration.

The automatic multiport valve simplifies operation by scheduling regular backwash and rinse cycles, maintaining optimal media performance with minimal intervention.

• Key Features

• 10” x 54” FRP (Fibreglass Reinforced Plastic) pressure vessel
• Includes top-mounted automatic backwash control valve (Runxin/Canature type)
• Programmable cycles based on time or volume (model dependent)
• 2.5” threaded top opening – industry standard
• Riser pipe, bottom strainer, and top distributor included
• Designed for use with wide variety of filtration media (sold separately)
• Compact size – ideal for space-conscious installations
• Energy-efficient system with low power consumption

✓ Benefits

✓ Automates backwashing and rinsing for consistent media efficiency
✓ Reduces need for manual maintenance or user input
✓ Supplied without media – allowing for tailored water treatment solutions
✓ Suitable for homes, guesthouses, clinics, and light commercial settings
✓ Excellent for borehole, rainwater, or municipal pre-filtration
✓ Durable, long-life materials for years of trouble-free use

Technical Specifications

• Vessel Size: 10” diameter × 54” height
• Material: FRP (fibreglass reinforced plastic)
• Top Opening: 2.5” threaded
• Control Valve: Automatic multiport backwash head (top-mounted)
• Valve Port Size: 1” BSP female inlet/outlet
• Flow Rate Range: Up to 2500–3000 L/h depending on media
• Max Working Pressure: 6 bar
• Operating Temperature: 4°C – 45°C
• Riser Pipe & Distributors: Included (top & bottom)
• Power Supply: 220V AC (standard South African plug)
• Media Capacity: Approx. 55 – 65 kg (media not included)

What You Get

1 × 10×54 FRP Pressure Vessel (2.5” top opening)
1 × Automatic backwash valve with programmable settings
1 × Riser pipe with top and bottom distributor strainers
Note: Media not included – choose appropriate filtration media separately based on application
