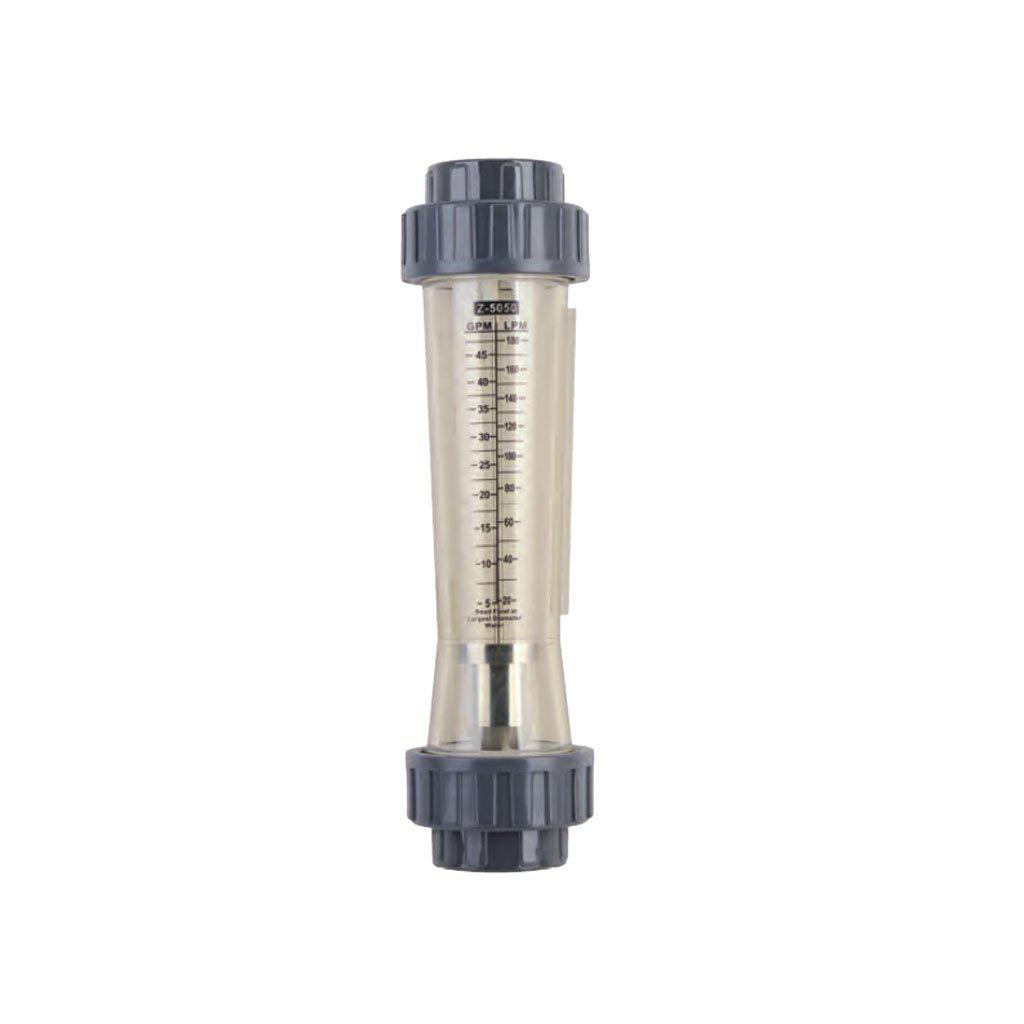

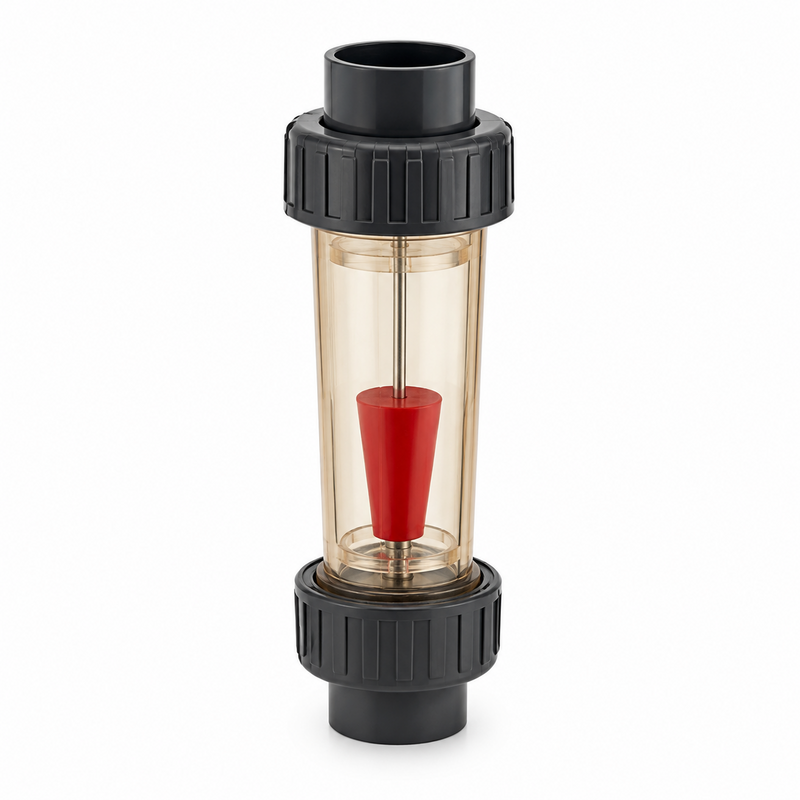

Flowtech Z-5050 Inline Rotameter – 20-180 L/min, 63 mm Solvent-Weld Socket

The Flowtech Z-5050 inline rotameter provides direct visual measurement of clean-water flow from 20-180 L/min. Its transparent tapered metering tube and removable union ends allow straightforward installation, inspection and maintenance.

Key features

• Direct visual flow indication without electrical power
• Dual LPM/GPM water scale
• Union-ended construction for straightforward removal and maintenance
• Side-engaging O-rings for positive union sealing
• Vertical inline installation for continuous flow monitoring

Technical specifications

• Model: Z-5050
• Water flow range: 20-180 L/min (5-45 GPM)
• Connection: 63 mm solvent-weld socket union
• Accuracy: ±5% of full scale
• Maximum working pressure: 6 bar
• Maximum working temperature: 60 °C
• Installation: Vertical, with upward flow
• Approximate dimensions: 290 mm body length, 375 mm overall length and 100 mm body diameter
• Approximate product mass: 2.5 kg

Typical applications

• Water-treatment and filtration systems
• Irrigation and water-distribution monitoring
• Process-water measurement
• Equipment commissioning and flow balancing

Installation guidance

• Install vertically with the inlet below the outlet.
• Use compatible pipe, primer and solvent cement for the stated socket size.
• Support adjoining pipework so that no mechanical load is transferred to the meter body.
• Open valves gradually to avoid pressure shock and sudden float impact.
• Confirm material and seal compatibility before use with liquids other than clean water.

Selection guidance

This meter is calibrated for water. Select a flow range that places normal operation within the middle section of the scale. Fluid density and viscosity can affect readings with other liquids.
