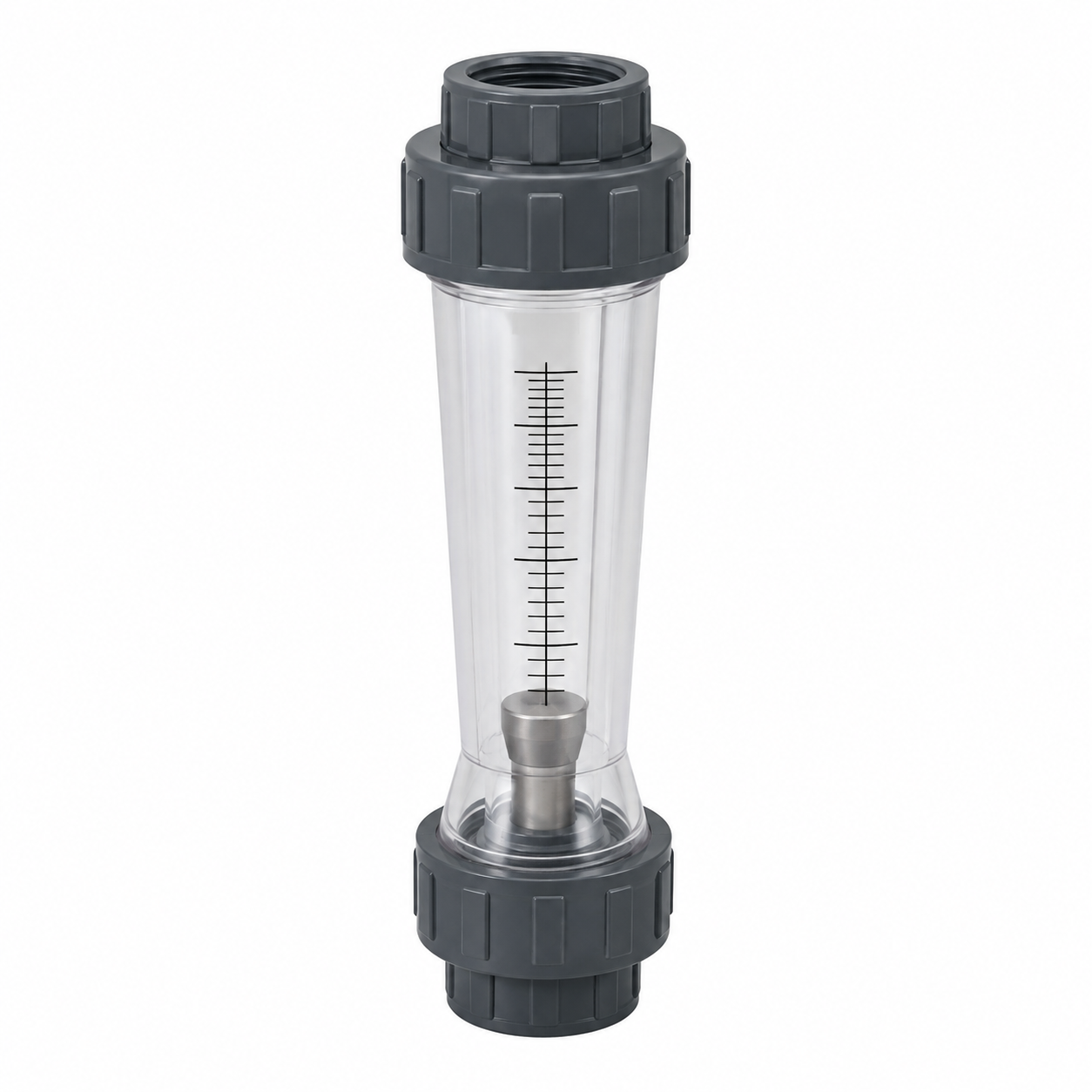

Flowtech Z-5032 inline rotameter, 10-100 L/min, 1-inch BSP female, steel float
Flowtech Z-5032 inline rotameter, 10-100 L/min, 1-inch BSP female, steel float

Flowtech Z-5032 PSU Inline Rotameter – 10-100 L/min, 1″ NPT Female

The Flowtech Z-5032 inline rotameter provides direct visual measurement of clean-water flow from 10-100 L/min. Its transparent...
Availability: In stock
Product type: Flow Meters
R 5,659.00
R 9,334.32
R 5,659.00
Please hurry! Only 31 left in stock
Subtotal: R 5,659.00
10 customers are viewing this product

Shipping & Delivery

Select from shipping options at Check Out - Shipped & Delivered Within 2- 5 Business Days

Special Delivery Requests / Notes

All 4m & 6m pipe lengths will be cut into 2m lengths for courier delivery. If you require full lengths please email us with your order number and request.

Discounts %

Note: Not all discounts can be compunded, one discount can be applied to an order at a time. - Receive 10% off all orders from 15 Dec–8 Jan as our festive thank-you.
Flowtech Z-5032 inline rotameter, 10-100 L/min, 1-inch BSP female, steel float

Flowtech Z-5032 PSU Inline Rotameter – 10-100 L/min, 1″ NPT Female

R 9,334.32 R 5,659.00
Flowtech Z-5032 inline rotameter, 10-100 L/min, 1-inch BSP female, steel float

Flowtech Z-5032 PSU Inline Rotameter – 10-100 L/min, 1″ NPT Female

R 9,334.32 R 5,659.00
Description

The Flowtech Z-5032 inline rotameter provides direct visual measurement of clean-water flow from 10-100 L/min. Its transparent tapered metering tube and removable union ends allow straightforward installation, inspection and maintenance.

Key features

  • Direct visual flow indication without electrical power
  • Dual LPM/GPM water scale
  • Steel float configuration for the supplied flow scale
  • Union-ended construction for straightforward removal and maintenance
  • Side-engaging O-rings for positive union sealing
  • Vertical inline installation for continuous flow monitoring

Technical specifications

  • Model: Z-5032
  • Water flow range: 10-100 L/min (2.5-25 GPM)
  • Connection: 1-inch NPT female thread
  • Float: Steel configuration
  • Accuracy: ±5% of full scale
  • Maximum working pressure: 6 bar
  • Maximum working temperature: 60 °C
  • Installation: Vertical, with upward flow
  • Approximate dimensions: 223 mm body length, 287 mm overall length and 72 mm body diameter
  • Approximate product mass: 0.65 kg

Typical applications

  • Water-treatment and filtration systems
  • Irrigation and water-distribution monitoring
  • Process-water measurement
  • Equipment commissioning and flow balancing

Installation guidance

  • Install vertically with the inlet below the outlet.
  • Use NPT-compatible fittings and a suitable thread-sealing method.
  • Support adjoining pipework so that no mechanical load is transferred to the meter body.
  • Open valves gradually to avoid pressure shock and sudden float impact.
  • Confirm material and seal compatibility before use with liquids other than clean water.

Selection guidance

This meter is calibrated for water. Select a flow range that places normal operation within the middle section of the scale. Fluid density and viscosity can affect readings with other liquids.
