CEPEX TWISTER Disc Filter – 3" | 130 Micron | 50m³/h Flow Rate

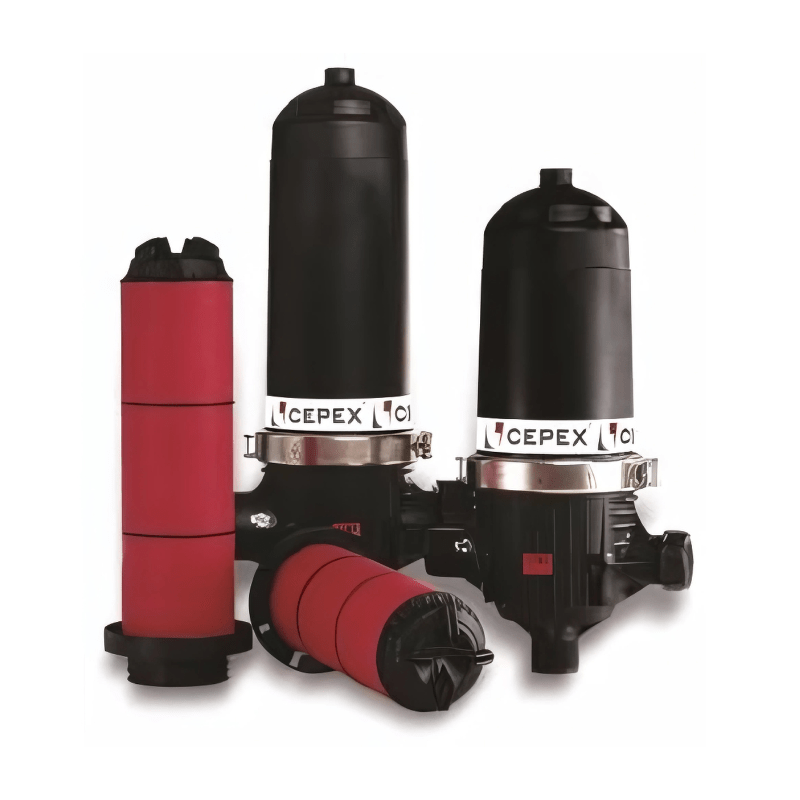

The CEPEX TWISTER Disc Filter is a high-performance filtration unit designed for large-scale water filtration needs in agricultural irrigation, horticulture, commercial landscaping, and industrial water supply systems. With a 130-micron filtration rating and robust 3" inlet/outlet, it provides reliable sediment and particulate removal for flow rates up to 50m³/h.

This model incorporates CEPEX’s unique Twister self-cleaning mechanism, ensuring continuous filtration performance with minimal manual intervention and a long service life.

Key Features:

• Disc Filtration Technology – 130-micron precision disc element captures fine particulates

• Twister Cleaning Mechanism – Enables faster, more effective backflushing

• High Flow Capacity – Handles flow rates up to 50,000 litres per hour (50m³/h)

• 3” BSP Connections – Robust and standardised pipe integration

• Tool-Free Maintenance – Simple assembly/disassembly for fast access and cleaning

• UV-Resistant Body – Constructed from reinforced polypropylene for outdoor durability

Technical Specifications:

• Brand: CEPEX

• Model: TWISTER L

• Filtration Type: Disc filter

• Micron Rating: 130 µm

• Max Flow Rate: 50 m³/h

• Connection Size: 3" BSP Female Threaded

• Max Operating Pressure: 8 bar

• Filter Area: Approx. 930 cm²

• Construction Material: UV-resistant Polypropylene

• Cleaning System: Manual / Assisted Twister backflush

• Installation Position: Horizontal

• Suitable for: Irrigation, greenhouse systems, agriculture, commercial filtration

Applications:

• Agricultural Irrigation Systems – Protects drip emitters, sprinklers, and pipelines from clogging

• Greenhouse & Nursery Operations – Filters water for misting and fertigation systems

• Commercial Landscaping – Prevents sediment damage to valves and control systems

• Water Treatment Pre-Filtration – First-stage filtration before finer polishing or UV sterilisation

Benefits:

• Reliable, non-metallic construction for chemical and corrosion resistance

• Effective debris removal even under variable flow conditions

• Reduces maintenance intervals on downstream systems

• Quick manual or semi-automatic cleaning via Twister function

• Environmentally friendly – No consumables or chemical cleaners required

What’s in the Box:

• 1 x CEPEX TWISTER Disc Filter Unit

• 1 x 130-Micron Disc Cartridge (pre-installed)



Notes:

• Images are for reference purposes and may not show exact size or configuration

• Ensure compatibility with your system’s operating pressure and flow rate

• Recommended installation with a bypass valve for uninterrupted servicing
