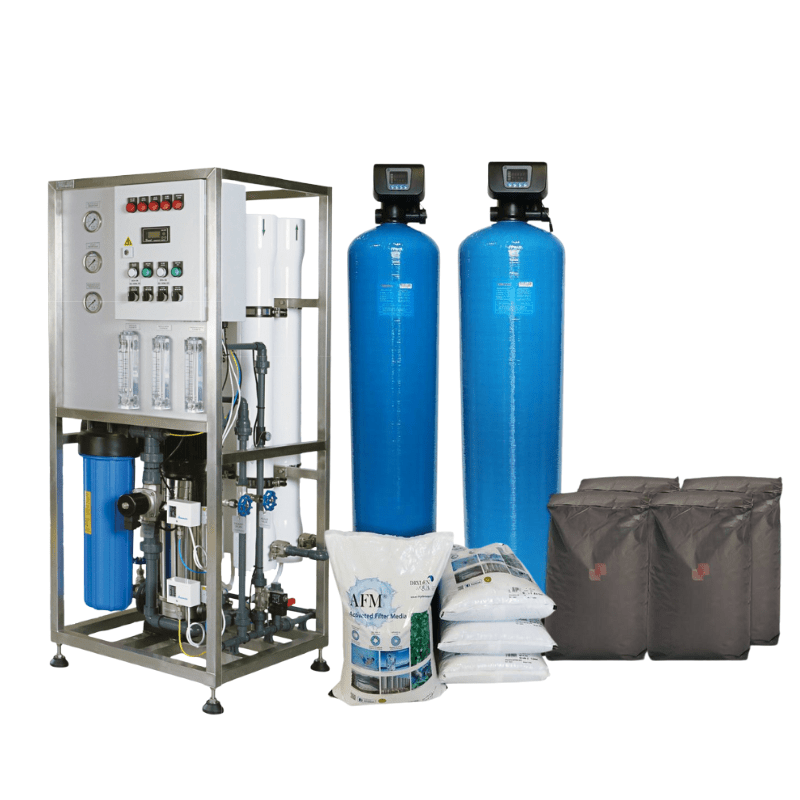

Commercial Reverse Osmosis Water Purification System – 1000 L/h with 13x54 Auto AFM® & GAC Filtration

This fully integrated Commercial Reverse Osmosis Water Purification System is designed for high-capacity water treatment, producing 1000 litres per hour of purified water. It combines the LPRO-B16-6000 Reverse Osmosis Unitwith two pre-filtration systems:

1. AFM® Media FRP Vessel 13x54 – Automatic Backwash (for sediment, turbidity, and heavy metal removal)
2. GAC Media FRP Vessel 13x54 – Automatic Backwash (for chlorine, organic compounds, and taste/odour removal)

This complete system is ideal for commercial, industrial, and municipal applications requiring consistent, high-purity water output. Featuring automatic backwash filtration, high-efficiency membranes, and intelligent control, this system ensures reliable, low-maintenance operation with superior filtration performance.

Key Features:

1. LPRO-B16-6000 Commercial Reverse Osmosis Unit (1000 L/h)

• High-Purity Water Production: Removes up to 99% of dissolved solids, salts, bacteria, and contaminants.
• Advanced RO Membranes: High-efficiency membranes ensure maximum contaminant rejection and water recovery.
• Intelligent Control Panel: Fully automated operation with system monitoring and alarms.
• Energy-Efficient Pump System: Ensures optimal pressure for efficient RO performance.
• Durable Stainless Steel Frame: Built for long-term industrial and commercial use.

2. AFM® Media FRP Vessel 13x54 – Automatic Backwash (Pre-Filtration)

• Advanced Filtration Media (AFM®): Provides superior filtration compared to standard sand media.
• Removes: Sediment, turbidity, iron, manganese, and heavy metals.
• Automatic Backwash System: Reduces manual maintenance and ensures consistent performance.
• NSF Certified: High-quality filtration for potable water applications.

3. GAC Media FRP Vessel 13x54 – Automatic Backwash (Activated Carbon Filtration)

• Granular Activated Carbon (GAC): Removes chlorine, organic compounds, pesticides, and volatile organic chemicals (VOCs).
• Enhances Water Taste & Odour: Eliminates unpleasant smells and improves overall water quality.
• Automatic Backwash System: Self-cleaning operation for long-lasting performance.
• Pre-Treatment for RO System: Protects reverse osmosis membranes from damage caused by chlorine and organic pollutants.

Technical Specifications:

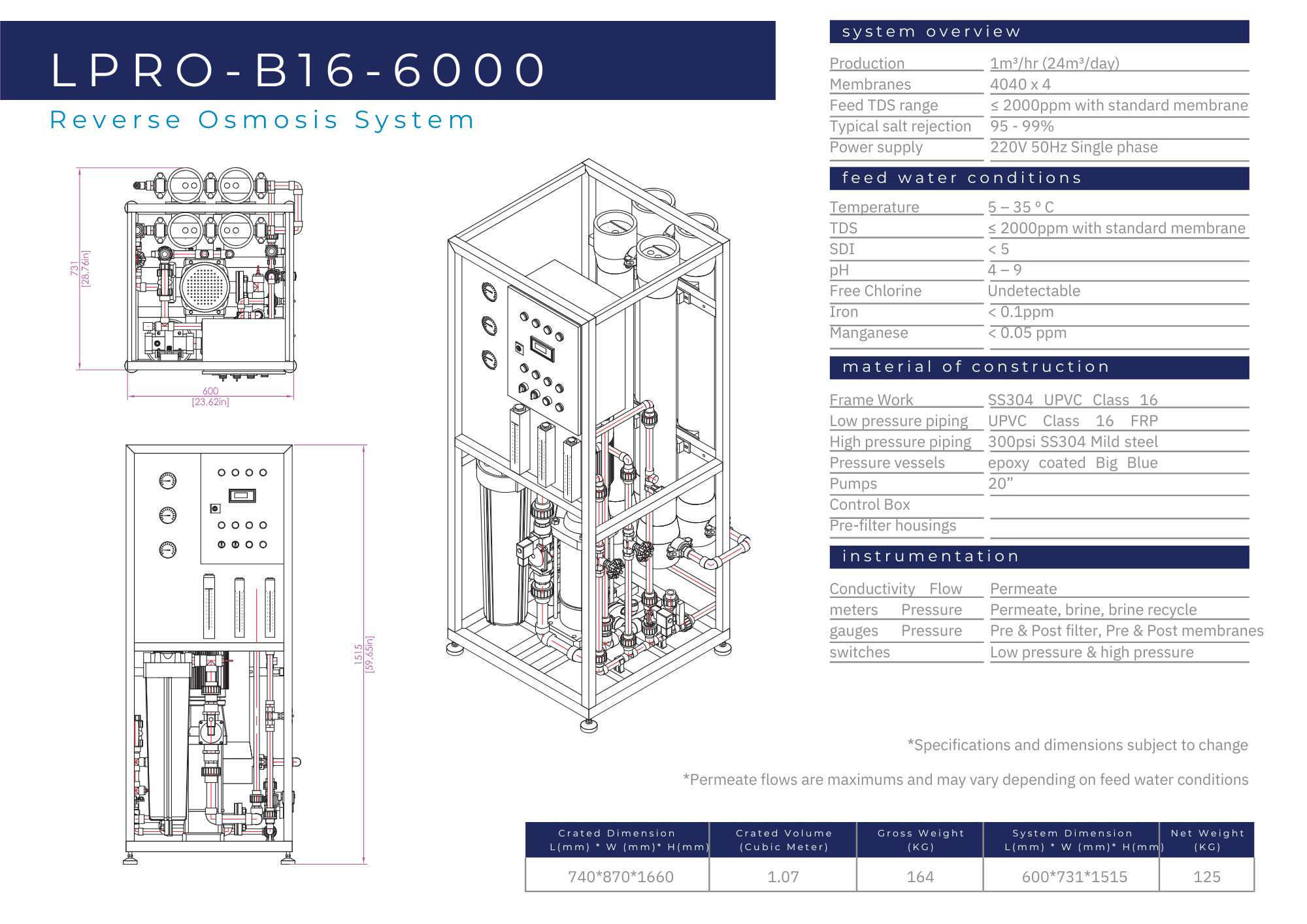

LPRO-B16-6000 Reverse Osmosis Unit:

• Water Output: 1000 L/h
• Filtration Stages: 5-Stage Reverse Osmosis Purification
• Membrane Type: High-Efficiency RO Membranes (4 x Membranes Included)
• Operating Pressure: 1.0 – 1.5 MPa
• Power Supply: 220V / 50Hz Single Phase
• Pump System: High-Pressure Pump for Optimal RO Performance
• Frame Material: Stainless Steel

AFM® Media FRP Vessel 13x54 – Automatic Backwash:

• Vessel Size: 13x54 inches
• Filtration Media: Activated Filter Media (AFM®)
• Backwash Control: Fully Automatic
• Maximum Flow Rate: 2.5 m³/h
• Operating Pressure: 100 PSI
• Operating Temperature: Up to 50°C

GAC Media FRP Vessel 13x54 – Automatic Backwash:

• Vessel Size: 13x54 inches
• Filtration Media: Granular Activated Carbon (GAC)
• Backwash Control: Fully Automatic
• Maximum Flow Rate: 2.5 m³/h
• Operating Pressure: 100 PSI
• Operating Temperature: Up to 50°C

Applications:

• Commercial Water Purification: Ensures high-quality water for restaurants, hotels, and bottling plants.
• Industrial Water Treatment: Used in manufacturing, cooling systems, and process water applications.
• Municipal Water Treatment: Ideal for producing safe, potable water in community water supply systems.
• Pre-Treatment for Ultra-Pure Water Systems: Used in pharmaceutical, food, and beverage production.
• Desalination & Borehole Water Treatment: Removes salts, minerals, and organic contaminants.
• Agriculture & Hydroponics: Provides high-quality water for irrigation and nutrient delivery.

Benefits:

• High-Capacity Water Purification: Produces 1000 litres per hour of ultra-pure water.
• Advanced Pre-Filtration: AFM® and GAC filtration ensure effective removal of sediments, metals, chlorine, and organic contaminants before RO processing.
• Automatic Backwash Filtration: Reduces maintenance, extends media life, and ensures optimal filtration.
• Improved RO System Performance: Pre-filtration protects RO membranes from damage and scaling.
• Energy-Efficient Design: Reduces water waste while maximising filtration efficiency.
• Durable & Reliable: Built with high-quality materials, ensuring long-term operation.
• NSF Certified Components: Guarantees safe, high-quality water for commercial and industrial use.

What You Get:

• 1 x LPRO-B16-6000 Reverse Osmosis Unit (1000 L/h)
• 1 x AFM® Media FRP Vessel 13x54 – Automatic Backwash
• 1 x GAC Media FRP Vessel 13x54 – Automatic Backwash
• 4 x Standard Membranes Included - Please request assistance for type required

Why Choose This RO System from H2O Warehouse?

At H2O Warehouse, we provide cutting-edge water purification solutions designed for efficiency, durability, and superior performance. This Commercial Reverse Osmosis System (1000 L/h) with AFM® and GAC Filtrationoffers comprehensive water treatment, ensuring high-purity, great-tasting water for industrial, commercial, and municipal applications.

✔ High-Capacity Water Purification
✔ Advanced Filtration Technology (AFM® + GAC)
✔ Automatic Backwash for Maintenance-Free Operation
✔ Energy-Efficient & Cost-Effective
✔ NSF Certified Components for Safe Water Treatment
