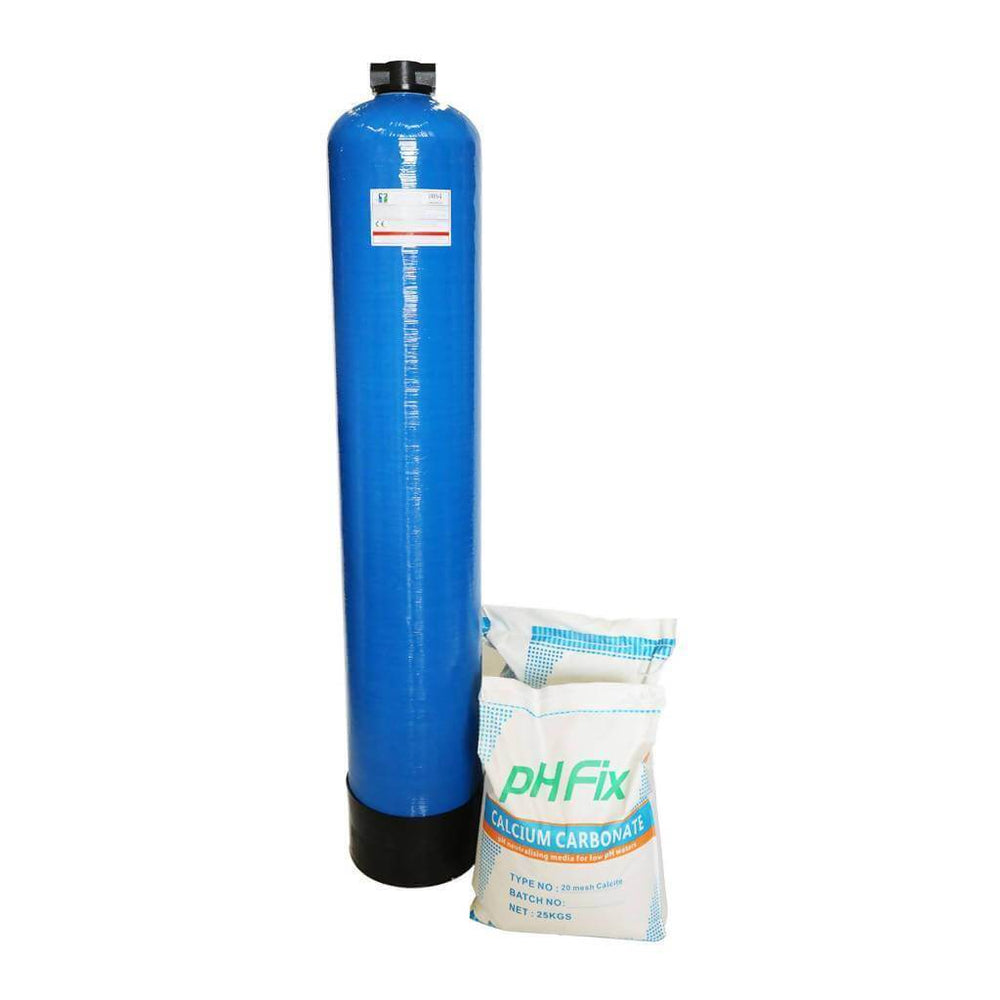

Calcite Acid Neutralising & pH Correction Filter – 12×52 FRP Vessel – With Media

The Calcite 12×52 acid neutralising and pH correction filter raises the pH of acidic water as it passes through a bed of calcium carbonate media. It helps reduce the corrosive effect of low-pH water on plumbing and equipment when correctly selected for the source water.

This package includes the 12×52 FRP vessel, a flow-through tank head, internal distribution components and Calcite media.

Key Features & Benefits

• Low-pH correction: Calcite gradually dissolves to neutralise acidity.
• Plumbing protection: Helps address corrosion associated with acidic water, subject to water chemistry and system sizing.
• Simple flow-through arrangement: The standard tank head provides flow through the media; it is not an automatic or manual backwash valve.
• Replenishable media: Top up the Calcite as it is consumed, based on media level and treated-water pH.

Applications

• Acidic borehole or wellpoint water, subject to analysis.
• Low-pH rainwater or stored water where Calcite treatment is appropriate.
• Residential and commercial treatment systems requiring upward pH adjustment.

Technical Specifications

• Product code: H2OW1225
• Vessel size designation: 12×52; nominal vessel designation, not the installed height including the valve.
• Vessel material: Fibreglass-reinforced plastic (FRP).
• Treatment media: Calcite calcium carbonate media
• Head / control: Standard flow-through tank head; no backwash control valve included.
• Treatment direction: Raises low pH; this is not a treatment for lowering high pH.
• Sizing factors: Inlet pH, acidity, alkalinity, contact time, media depth and required outlet pH.

What’s Included

• Vessel: 1 × 12×52 FRP vessel.
• Tank head: 1 × flow-through tank head.
• Internals: Riser pipe with top and bottom distribution components.
• Media: Calcite pH correction media included.

Installation & Use

• Water analysis: Measure inlet pH, alkalinity and hardness before selecting the unit.
• Media loading: Load and rinse according to the vessel and media instructions. Keep the specified freeboard; do not use the vessel’s total volume as the media fill volume.
• Flow direction: The installer must establish the correct flow direction and cleaning arrangement for the supplied head and internal components.
• Maintenance: Monitor outlet pH and media level. Arrange cleaning and replenishment before declining performance affects the water supply.
• Safe servicing: Isolate and depressurise the vessel before opening it. Respect the pressure and temperature ratings on the actual components.

Important Information

• Hardness increase: Calcite adds calcium as it dissolves and can increase hardness. A downstream softener may be needed where the resulting hardness is excessive.
• Backwashing: The standard flow-through head does not perform a backwash cycle. If the application requires backwashing, specify a suitable valve and drain arrangement separately.
• Water quality: Sediment pre-filtration may be necessary. The Calcite stage does not remove all other contaminants or disinfect the water.
• Treatment performance: Final pH and service flow depend on the water chemistry and contact time; a single outlet-pH result cannot be guaranteed for every supply.
