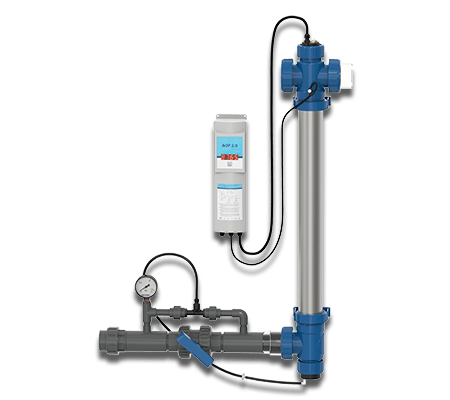

BLUE LAGOON AOP COMPACT – Ozone & UV-C 2.0 Disinfection System

The BLUE LAGOON AOP COMPACT combines the power of Ozone (O₃) and UV-C 2.0 technology in a single advanced disinfection unit, offering superior water treatment for residential and commercial swimming pools. As part of the next-generation AOP (Advanced Oxidation Process), this system effectively neutralises bacteria, viruses, chloramines, and organic contaminants, providing crystal-clear, odour-free water with significantly reduced chlorine usage.

This compact, European-manufactured unit integrates seamlessly with existing pool circulation systems and delivers a powerful, chemical-free oxidation process. Ideal for environmentally conscious pool owners seeking the highest standard of disinfection and water clarity.

• Key Features

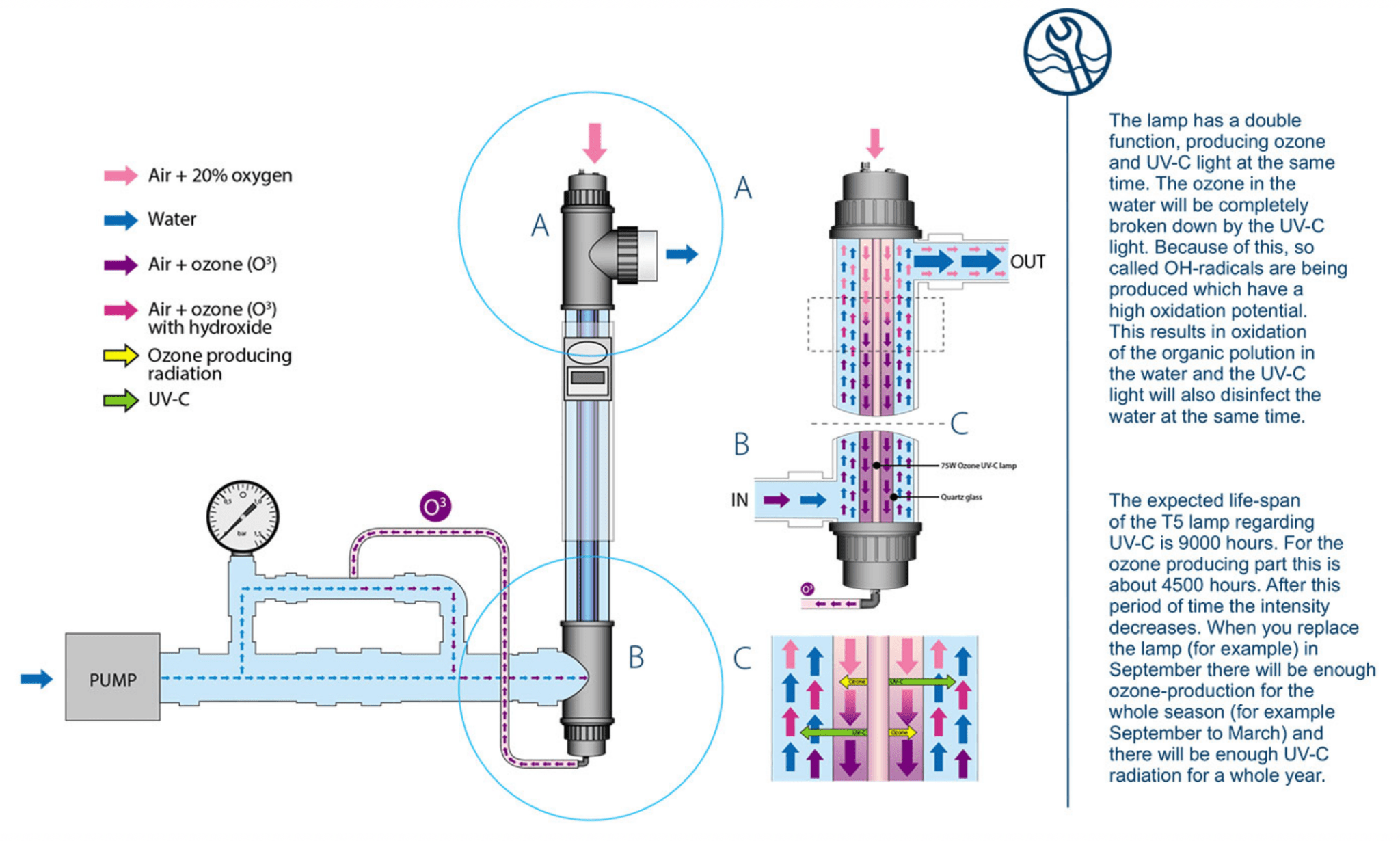

• Advanced Oxidation Process (AOP) combining UV-C and Ozone
• Integrated ozone generator and UV-C lamp in one compact unit
• Destroys bacteria, viruses, chloramines, and organic pollutants
• Reduces required chlorine dosage by up to 80%
• Prevents red eyes, skin irritation, and strong chlorine odours
• Stainless steel reactor chamber with internal UV reflection
• Flow switch protection and built-in ballast electronics
• Visual operation indicator and integrated mounting brackets
• Made in Europe – premium build quality and components

✓ Benefits

✓ Crystal-clear water with reduced reliance on chlorine or salt chlorination
✓ Improved swimmer comfort – no harsh chemical smells or irritation
✓ Environmentally friendly – reduces chemical consumption
✓ Easy to install in-line with most pool circulation systems
✓ Safe and effective – automatic shutoff protection if flow stops
✓ Ideal for high-end residential or boutique commercial pools

Technical Specifications

• Disinfection Type: AOP – Advanced Oxidation Process (Ozone + UV-C 2.0)
• Lamp Type: UV-C 2.0 with integrated ozone function
• Lamp Wattage: 75 W
• Recommended Pool Volume: Up to 70,000 litres (residential)
• Maximum Flow Rate: 25 m³/h
• Connection Size: Ø 63 mm (with reducing sleeves for Ø 50 mm)
• Housing Material: 316L stainless steel reactor
• Power Supply: 230V / 50-60Hz
• Control Features: Flow switch, ballast, visual lamp indicator
• Mounting: Wall mount with included brackets
• Warranty: 2 years on unit / 1 year on lamp

What You Get

1 × BLUE LAGOON AOP COMPACT disinfection unit
1 × 75W UV-C/Ozone lamp (pre-installed)
2 × Mounting brackets
1 × Instruction manual
Includes integrated electronics, flow switch, and connection adaptors

PDF Documents Downloads:

Operation Document: HERE

More about the advanced oxidation process: HERE
