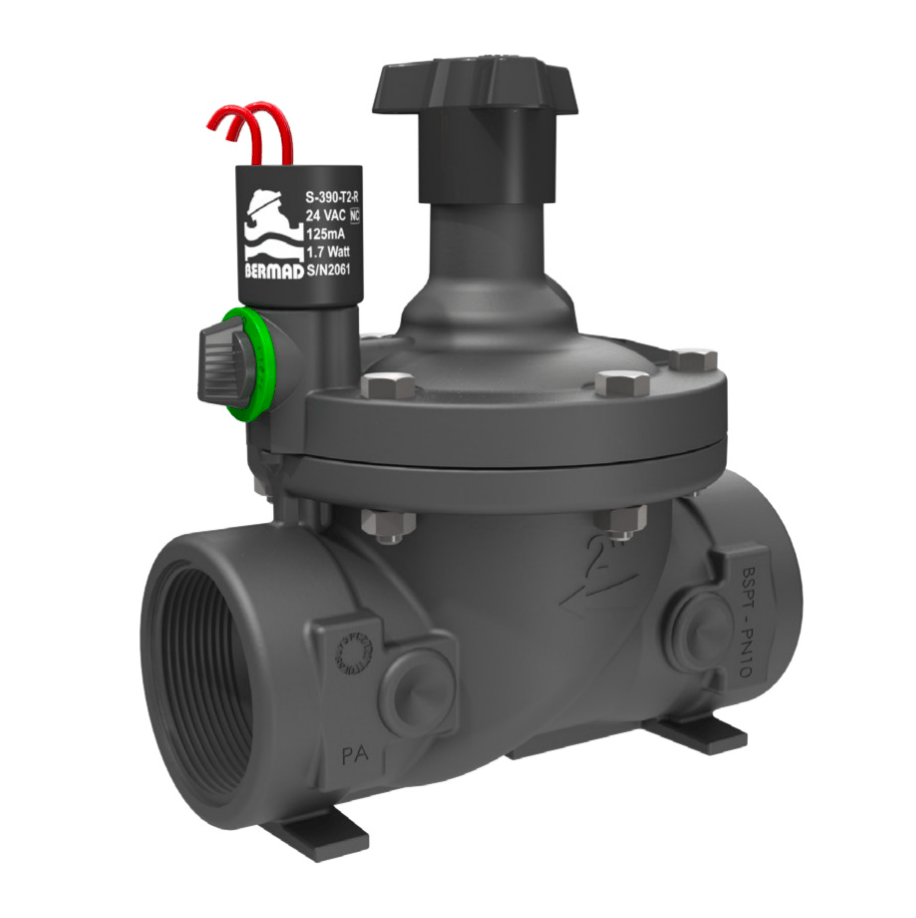

BERMAD IR-21T Solenoid Controlled 2-Way Valve | 25mm (DN25) BSP | Normally Closed

The BERMAD IR-21T Solenoid Controlled 2-Way Valve (DN25, 25mm BSP, Normally Closed) is a hydraulically operated diaphragm valve designed for automated irrigation and water management systems. Featuring high-flow capacity and low-pressure loss, this normally closed (N/C) solenoid valve ensures efficient water regulation when integrated with irrigation controllers.

Built with a corrosion-resistant reinforced polymer body, this valve is durable and reliable, capable of operating under varying pressure and flow conditions. Its normally closed function ensures that the valve remains shut when de-energised, preventing unnecessary water usage.

Key Features:

• Solenoid-Controlled 2-Way Valve – Electrically activated for automated irrigation and water control.
• Normally Closed (N/C) Configuration – Prevents water flow when not energised, ensuring efficient water use.
• 25mm (DN25) BSP Female Thread – Fits standard irrigation and industrial piping systems.
• Durable & Corrosion-Resistant Body – Built to withstand extreme environmental conditions.
• Low-Pressure Loss & High Flow Capacity – Ensures efficient system operation with minimal restrictions.
• Hydraulic Diaphragm Operation – Enables smooth and accurate water regulation.
• Reliable Performance Under Variable Conditions – Designed for agriculture, industrial, and municipal water applications.
• Easy Maintenance & Installation – User-friendly design for quick servicing and setup.

Technical Specifications:

• Model: BERMAD IR-21T
• Valve Type: Solenoid-Controlled 2-Way Valve
• Configuration: Normally Closed (N/C)
• Connection Size: 25mm (DN25) BSP Female
• Operating Pressure Range: 0.5 - 10 bar
• Flow Rate: Up to 6.5 m³/h (108 L/min)
• Body Material: Corrosion-resistant reinforced polymer
• Diaphragm Material: High-quality elastomer for extended durability
• Control Type: Electrical solenoid activation
• Installation Orientation: Horizontal or vertical

Operating Conditions:

• Pressure Range: 0.5 - 10 bar
• Flow Range: 0.2 - 6.5 m³/h (3 - 108 L/min)
• Fluid Temperature: Up to 60°C
• Filtration Requirement: 80 microns (200 mesh)

Applications:

• Agricultural Irrigation Systems – Provides automated and precise control for farms and plantations.
• Greenhouse & Nursery Irrigation – Ensures accurate water distribution for optimal plant growth.
• Municipal & Industrial Water Systems – Regulates flow for water treatment and distribution applications.
• Drip & Sprinkler Irrigation Systems – Ensures efficient water use and distribution control.
• Water Distribution Networks – Controls automated supply for commercial and industrial applications.

Benefits:

✔ Automated & Efficient Operation – Improves irrigation precision while reducing manual labour.
✔ Prevents Unwanted Water Flow – Normally closed design ensures water conservation.
✔ Long-Lasting Durability – Built from high-quality materials for extreme weather resistance.
✔ Reduces Water Wastage & Enhances Efficiency – Ideal for cost-effective and sustainable irrigation.
✔ Quick Installation & Low Maintenance – User-friendly design for easy setup and servicing.

Why Choose the BERMAD IR-21T Solenoid Controlled Valve from H2O Warehouse?

At H2O Warehouse, we supply premium irrigation and water control solutions that enhance efficiency, reliability, and sustainability. The BERMAD IR-21T Solenoid Controlled 2-Way Valve (25mm BSP, Normally Closed) is a trusted solution for automated irrigation systems, delivering superior water management and precision control.

Download Product Brochure Here
