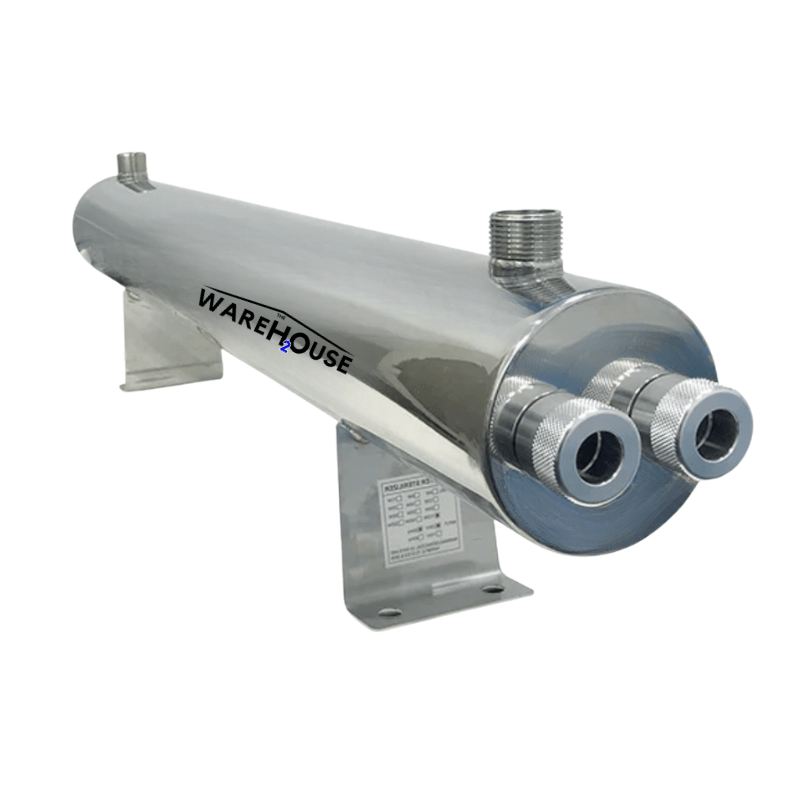

110W UV Sterilizer Complete Set | 950mm | 5440 LPH | Dual Lamp System

The 110W UV Sterilizer Complete Set is a powerful, dual-lamp disinfection system designed to provide chemical-free microbial control for a wide range of water treatment applications. Built with a durable SUS304 stainless steel housing and equipped with two high-efficiency 55W UV-C lamps, this unit delivers effective purification at flow rates of up to 5440 litres per hour.

Ideal for residential whole-house filtration, commercial water treatment, rainwater harvesting, aquaculture, and irrigation systems, the 110W UV system ensures safe, crystal-clear water by eliminating 99.99% of harmful microorganisms such as bacteria, viruses, algae, and protozoa.

Key Features:

✔ High Flow Rate – 5440 LPH – Designed for larger systems requiring higher volume disinfection
✔ Dual 55W UV-C Lamps – Provides total 110W of ultraviolet germicidal power
✔ Chemical-Free Disinfection – No added chemicals, no taste or odour alteration
✔ Durable SUS304 Stainless Steel Housing – Corrosion-resistant and hygienic for potable water applications
✔ Quartz Sleeve Protection – Two quartz sleeves ensure optimal UV transmittance and lamp longevity
✔ Compact Horizontal Design – 950mm long body fits standard filtration setups
✔ Easy Installation & Maintenance – Includes UV ballast, mounting hardware, and replaceable lamp/sleeves

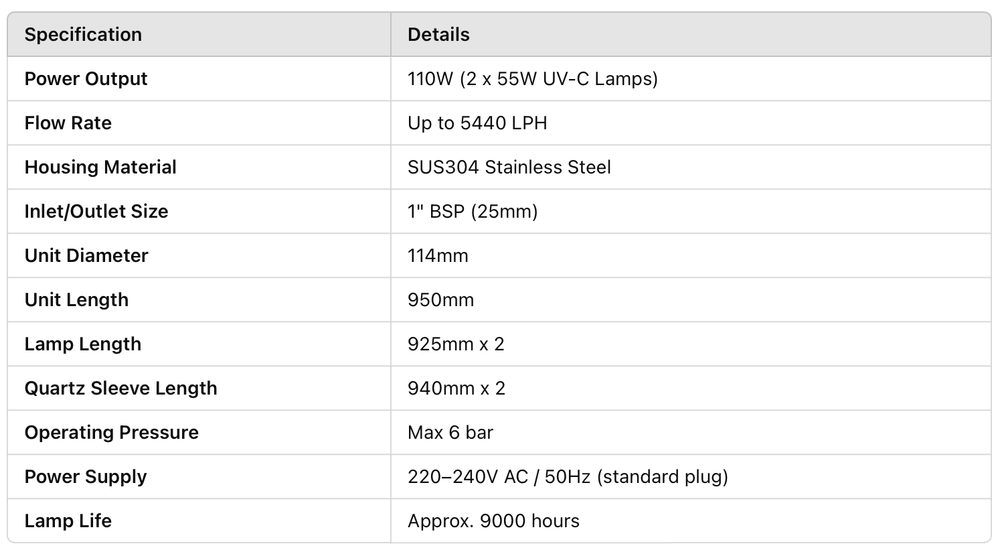

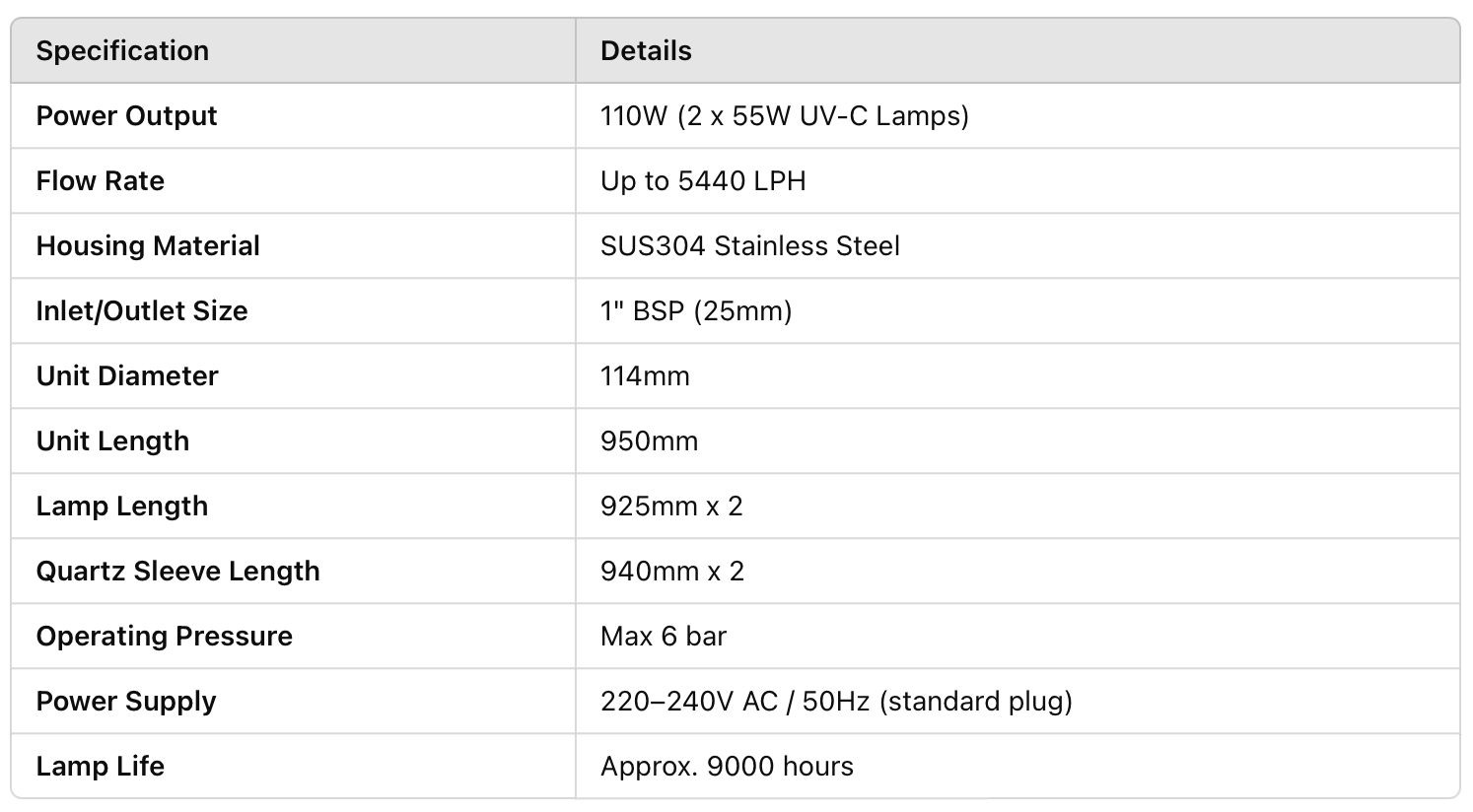

Technical Specifications:

What’s Included in the Set:

✔ 1 x SUS304 UV Sterilizer Housing – 950mm
✔ 2 x 55W UV-C Lamps (925mm)
✔ 2 x Quartz Sleeves (940mm)
✔ 1 x Dual-Lamp Electronic Ballast/Controller
✔ Mounting Brackets and Fasteners
✔ User Manual & Installation Guide

Always install a surge protector to avoid premature ballast or lamp failure.

Applications:

✔ Whole-House Water Filtration – Ensures bacteria-free water for every tap
✔ Rainwater Harvesting Systems – Makes collected rainwater safe for domestic use
✔ Aquaculture & Fish Farming – Prevents disease outbreaks by sterilising tank water
✔ Irrigation & Agriculture – Protects crops by eliminating pathogens from source water
✔ Food & Beverage Processing – Disinfects wash water or ingredient supply
✔ Pre- or Post-Filtration for RO Systems – Ensures water safety and purity

Benefits:

✔ Highly Effective – Destroys bacteria, viruses, algae, and protozoa instantly
✔ No Chemicals or Taste Alteration – Water remains pure and unmodified
✔ Low Maintenance – Replace lamp annually and clean quartz sleeve as needed
✔ Eco-Friendly – Zero waste, no hazardous by-products
✔ Long Service Life – Lamps last up to 9000 hours; stainless housing ensures longevity

Why Choose the 110W UV Sterilizer Complete Set?

This steriliser is an ideal solution for high-demand applications requiring fast, reliable, and chemical-free water disinfection. With dual UV lamps, food-grade stainless steel construction, and easy installation, it’s a robust and efficient system for both domestic and commercial use.

Important Note:

Images are for reference only and may not show exact configuration.
UV systems must be installed after appropriate sediment filtration to ensure optimal performance.
