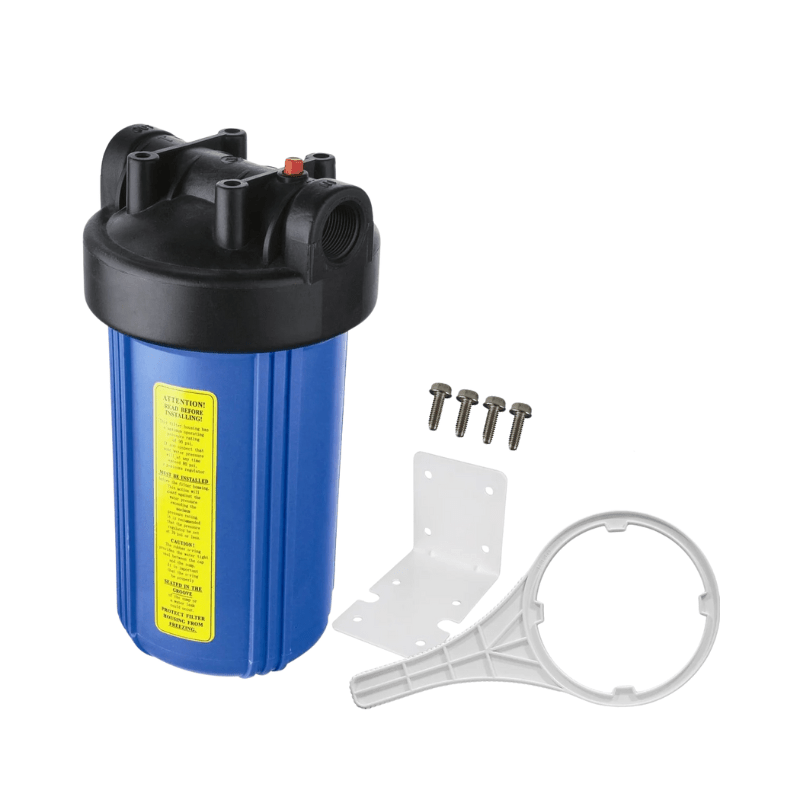

10 Inch Big Blue Water Filter Housing Set, Blue, 1 Inch Port, Double O-Ring incl Bracket & Spanner

The 10 Inch Big Blue Water Filter Housing, Blue, 1 Inch Port, Double O-Ring is perfectly designed to house drop-in water filter cartridges and ensures an efficient and durable system.

10-inch Big Blue water filter housing with a 1-inch port & air release valve
Removes bad-tasting & dirty looking water
Removes undesirable contaminants
Double O-ring ensures a leak-free seal

Product specifications:

Model: BBB101D
Filter housing colour: Blue
Filter housing size: 10-inch Big Blue
O-ring type: Double O-ring seal
Inlet/outlet port sizes: Female 1in thread
Maximum pressure: 6bar/ 90psi
Maximum operating temperature: 4 - 38°C
Dimensions [h x w]: 32 x 18.5cm

What you get:

• 1 x 10 inch Big Blue Housing (1 inch Ports)
• 1 x Epoxy coated bracket
• 1 x Stainless Steel Bolt & Washer set (mounting bracket to housing)
• 1 x Big Blue housing spanner

*Should not be installed in the sunlight

How it works:

Water from the mains is connected to the inlet port of the Water Filter Housing unit. The water is then directed downwards through the filter cartridge within the unit. This process removes unwanted contaminants. The water then flows upwards through the centre of the cartridge and through the outlet port, and supplies filtered water. Press the red air release button on start up to release air from the housing it to completely fill with water. As well as releasing the water pressure when it comes time for replacing the cartridge, making it easier to unscrew the housing.
