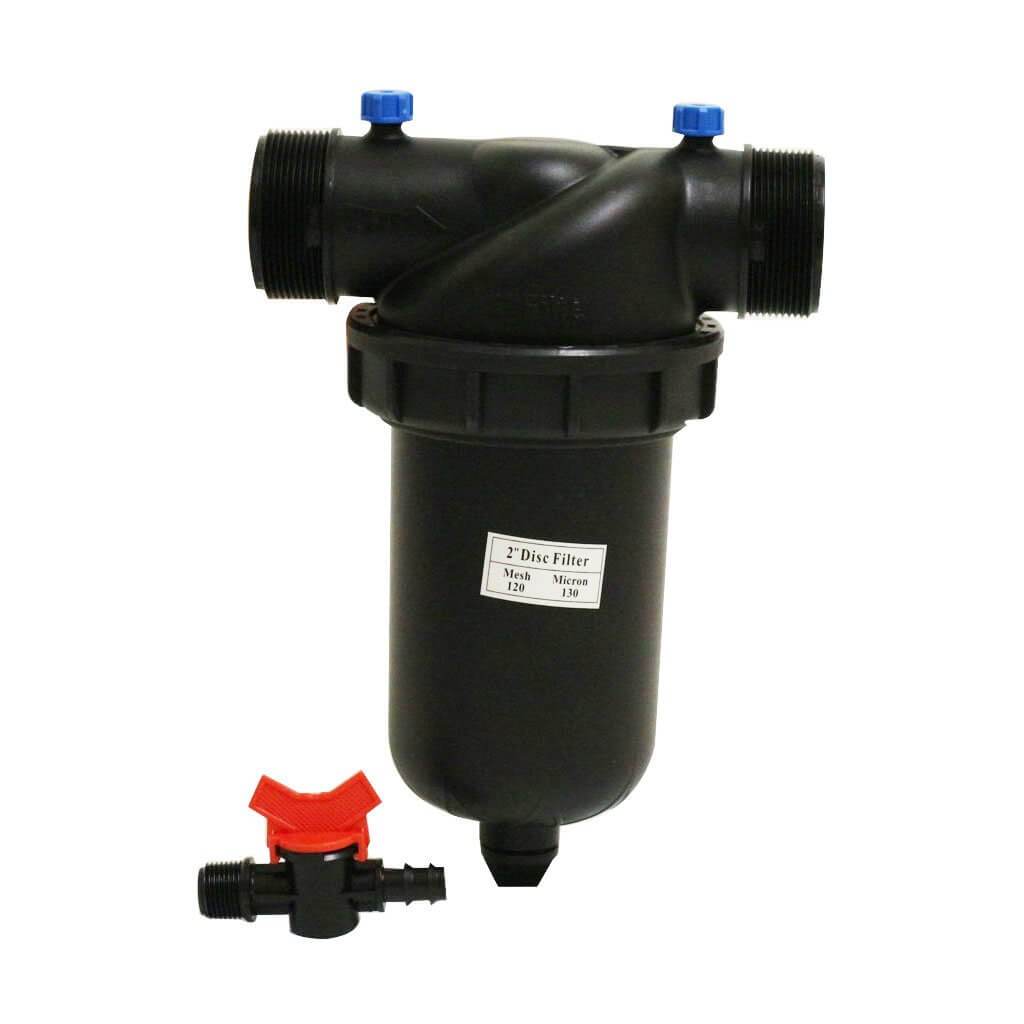

Disc Filter – 2" (50mm) | 130 Micron | Manual Clean

The 2-Inch Disc Filter with 130 Micron filtration rating offers effective protection for irrigation systems by capturing fine particles, sand, and organic matter. Designed for small to medium-scale agricultural, landscape, or residential systems, it is ideal for safeguarding drip lines, sprinklers, and valves from clogging and wear.

Constructed from high-quality UV-resistant polymer, this filter provides long-lasting durability in harsh outdoor conditions. Its manual cleaning design makes it easy to maintain and service without specialised tools.

Key Features:

• 130 Micron Disc Filtration – High precision filtering of debris, algae, and fine sediments

• 2” BSP Female Threaded Connections – Standardised inlet/outlet fittings for easy integration

• Manual Cleaning Design – Simple to disassemble, rinse, and reassemble

• Compact & Durable – UV-resistant reinforced plastic body for long life in exposed installations

• Ideal for Primary Filtration – Suitable for pre-filtration ahead of drip or micro-irrigation systems

Technical Specifications:

• Filter Type: Disc Filter

• Micron Rating: 130 µm

• Connection Size: 2" BSP Female Threaded

• Max Flow Rate: ±25–30 m³/h (depending on inlet pressure and system design)

• Max Operating Pressure: 6 bar

• Body Material: High-strength polypropylene (PP), UV-stabilised

• Cleaning Method: Manual disc removal and rinsing

• Installation Orientation: Horizontal or vertical

• Colour: Black with red disc cartridge

Applications:

• Agricultural Irrigation Systems – Protects micro-sprinklers, drippers, and nozzles

• Nurseries & Greenhouses – Removes suspended particles from recycled or dam water

• Landscaping Irrigation – Used in residential and estate irrigation zones

• Water Filtration Pre-Treatment – Before cartridge or media filters

Benefits:

• Helps extend the life of drip irrigation systems

• Easy to inspect and clean without tools

• Robust design suited to South African field conditions

• Can be mounted inline or on a manifold

• Cost-effective solution for reliable filtration

What’s in the Box:

• 1 x 2-Inch Disc Filter Housing

• 1 x 130-Micron Red Disc Cartridge (pre-installed)

• 1 x Flush Valve

Notes:

• Images are for illustration purposes and may not exactly reflect scale or disc colour

• Always flush the line before installation to remove debris from piping

• Backflushing recommended after pressure drop or visible flow reduction

Downloads:

Download Product Data Sheet HERE
